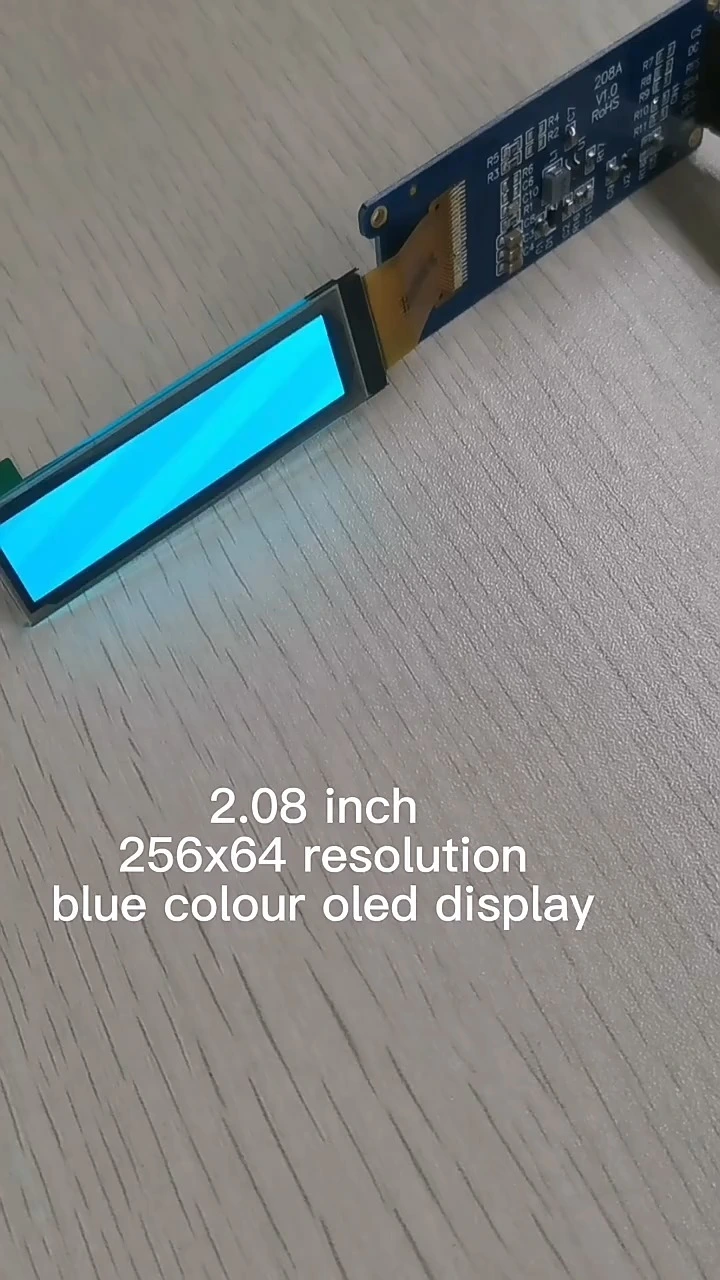

2.08-Inch OLED Display with 256x64 Resolution, SH1122 Driver IC, Multiple Interfaces
1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 256 × 64
3) Module Size : 82.50 × 19.00 × 1.60 (mm)
4) Panel Size : 60.50 × 19.00 × 1.60 (mm) including “Anti-Glare Polarizer”
5) Active Area : 51.18 × 12.78 (mm)
6) Pixel Pitch : 0.20 × 0.20 (mm)
7) Pixel Size : 0.18 × 0.18 (mm)
8) Driver IC: SH1122
9) Interface: 8-bit 68xx/80xx Parallel,3/4-wire SPI, I²C
10) Color:White/Blue
11)Operating Temperature:-40~70℃
12)Storage Temperature:-40~85℃
