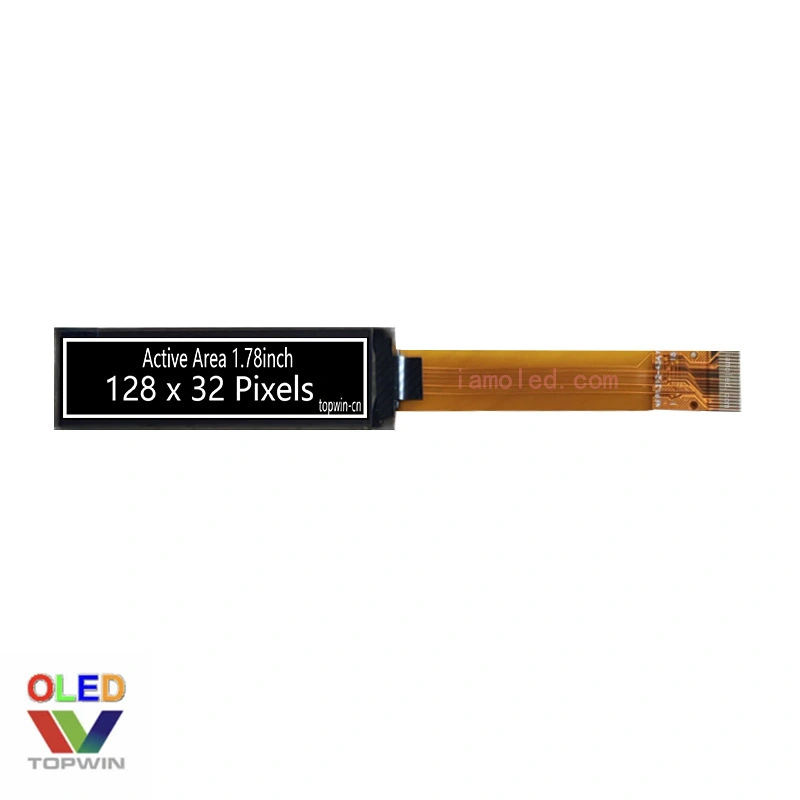

1.78-Inch OLED Display with 128x32 Resolution, SSD1312 Driver IC, SPI/I2C Interfaces
1.71'' 1.78 inch 128x32 white monochrome oled screen SSD 1312 driving serial Interface small screen
1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 128 × 32
3) Module Size : 170.5 × 15.75 × 2.00 (mm)
4) Panel Size : 50.50 × 15.75 × 2.00 (mm) including “Anti-glare Polarizer”
5) Active Area : 42.22 × 10.54 (mm)
6) Pixel Pitch : 0.33 × 0.33 (mm)
7) Pixel Size : 0.31 × 0.31 (mm)
8) Driver IC: SSD1312
9) Interface: I2C, 4 wire SPI
10) Color:White
11) -40~85℃
5.0
