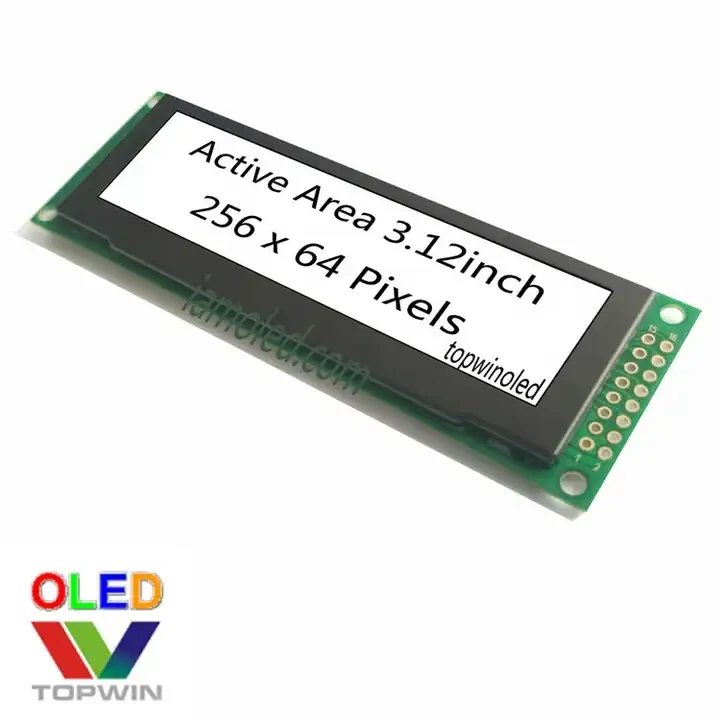

TOPWIN COG 3.12inch oled display module 16pin 256x64 SSD1322
Outline Drawing :100.5(W)x33.5(H)x6.3Max(T) mm
View Area: 78.78(W)x21.18(H) mm
Active Area： 76.78(W)x19.18(H) mm
Lattice ：256dots x 64dots --
Pixel Pitch： 0.30(W)x0.30(H) mm
Display Mode： Passive Matrix—OLED
Color: Yellow/Blue/White/Green
Interface: 8-Bit 68XX/80XX Parallel、 SPI
Drive Duty: 1/64
Driver IC :SSD1322
Shell :0.5T
5.0
