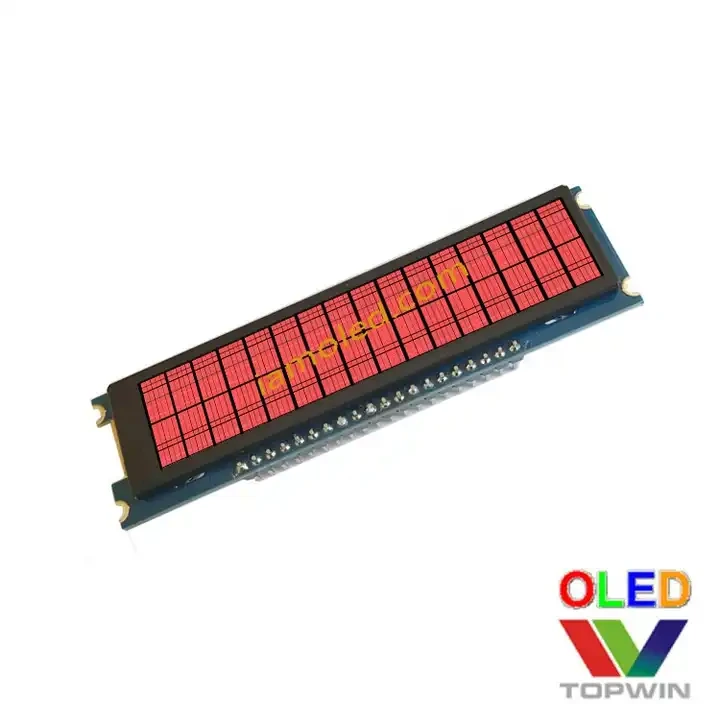

TOPWIN 2.26inch oled character display module
Module Size 80.0L×36.0W×7.7H mm
View Area 58.22×13.52 mm
Effective Area 56.22×11.52 mm
Pixel Size 0.57×0.67 mm
Pixel Pitch 0.6×0.7 mm
Number of pixels 16x2 dots
Display mode monochrome PMOLED(White/Red) —
Driver IC US2066 —
Viewing Direction All O’clock
Drive Method 1/16 Duty —
LCD Operating Voltage 15.0 V
LCM Operating Voltage 3.3~5V V
Operating Temperature -40 to 85 ℃
For OLE panel Storage Temperature -40 to 90 ℃
Interface 8080 Parallel Port
5.0
