0.6~0.78inch Monochrome Oled TOPWIN Brand 1
0.6~0.78inch Monochrome Oled TOPWIN Brand 2
0.6~0.78inch Monochrome Oled TOPWIN Brand 1
0.6~0.78inch Monochrome Oled TOPWIN Brand 2

0.6~0.78inch Monochrome Oled TOPWIN Brand

Send your inquiry

Company Advantages

· The quality of TOPWIN 0.6~0.78inch Monochrome Oled is assessed using a number of quality control tests. They are color shading, colorfastness check, size fitting test, and so forth.

· This product performance is superior, the service life is long, enjoys the high prestige in the international.

· Through our unremitting efforts, the product is now well-received in the marketplace and has a great commercial value.

Product Display

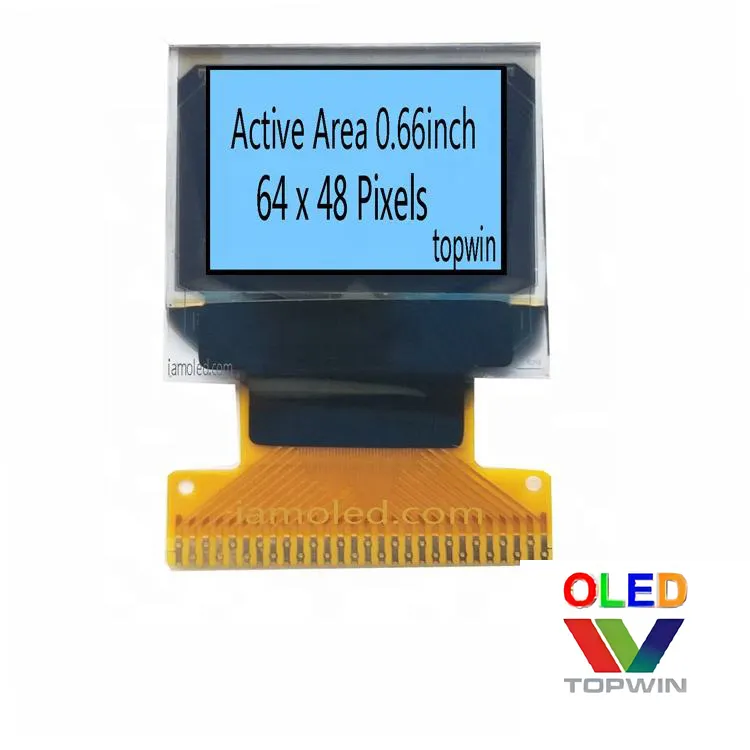

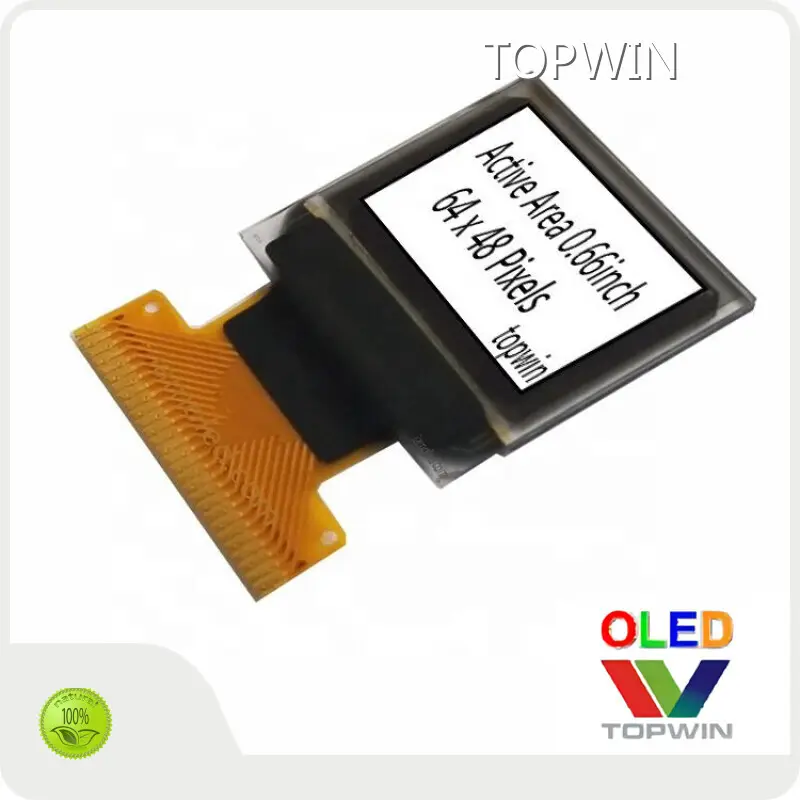

Introducing the VG-6448TSWPG03, a sophisticated 0.66-inch OLED display provided by TOPWIN, meticulously designed to meet the demanding requirements of a broad spectrum of electronic devices. This display offers versatile interfacing options, including 8-bit 68XX/80XX Parallel, 4-wire SPI, and I2C, ensuring seamless integration into your professional projects.

Featuring an impressive 64 x 48 pixel resolution, driven by the dependable SSD1315 Driver IC, it guarantees sharp and precise visual output. With an operational range spanning from -40 to 85°C, this OLED display is tailor-made for both industrial and consumer electronics, promising unwavering performance in even the most challenging environments.

Experience heightened display quality and reliability for your electronic applications with TOPWIN's VG-6448TSWPG03 OLED display.

2 (13)
2 (13)
1 (20)
1 (20)
4 (10)
4 (10)
3 (13)
3 (13)

Related Parameters

Size: 1.69inch Panel Size: 39.90×34.00×1.60(mm)
Model Number: UG-6028GDEBF02 Active Area: 33.575×26.864(mm)
Color Full color Pixel Pitch: 0.07 x 0.21 (mm)
Resolution: 160x128 Pixel Size:  0.045 x 0.194 (mm)
Driver IC: SEPS525 Operating Temperature: -40~85°
Interface: Parallel, 4-wire SPI, 6-bit RGB I/F Origin: China

Related Parameters

Display Type: 0.66inch oled display soldering 28pin Panel Size:  18.46 x 18.1 x1.25 (mm)
Display Mode: Passive Matrix Driver IC: SSD1315
Model Number:  VG-6448TSWPG03 Active Area: 13.42 x 10.06 (mm)
Interface: 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C Pixel Pitch: 0.21 x 0.21 (mm)
Drive Duty: 1/48 duty Pixel Size: 0.19 x 0.19 (mm)
Number of Pixels: 64 X 48 Operating Temperature. -40-85°
实物照片 (4)

Regular FAQ

TOPWIN TECHNOLOGY was established in 2005, we have been specializing in the electronic display industry for 18 years. Our products are exported to over 30 countries all over the world. We have strict production & quality control process, experienced team of professional engineers, efficient warehouse management to ensure that high quality products can be delivered to our customers quickly.

Can I get samples from your factory?
Sure! We can offer sample at a very favourable price, and send them out within 1~2 working days.
If products have some quality problem, how would you deal with?
We will provide free replacement.
How long is the delivery time?
Samples: 1~2 working days. Official orders: We keep most of the standard models in stock. For big order, we will discuss with you separetely.
What is the standard of package?
Export standard package or special package according to customer requirement.
What kind of certificate you have?
We have ISO9001, ISO14001, ISO45001, RoHS
What’s the trade terms?
DAP. (DDP needs to be negotiated separately)
What is the delivery method?
We have agreements with many international couriers and can offer the most economical rates. And will provide tracking number after delivery.
What is the payment method?
For small orders: T/T in advance. For big orders: 30% deposit in advance, balance before delivery.
Is there a MOQ?
Is it possible to customize?
Sure! We have a team of professional engineers who customize displays for different industries all over the world.
Is there technical support?
We will sent full specification,drawing and user guide. Our professional engineers will provide services at anytime.

Company Features

· Shenzhen Topwin Xingye Technology Limited stands at the forefront of their 0.6~0.78inch Monochrome Oled market.

· Our factory implements the most rigorous quality management systems, such as the ISO 9001 international quality management system and production management system. Under these systems, we can reduce defective percentage and increase production efficiency. The factory carries out strict quality and production management control systems. These systems require all of the incoming materials, parts, production techniques, and packaging ways to be tested and controlled to meet standards in the 0.6~0.78inch Monochrome Oled industry.

· It is our desire to establish a growing, vibrant, and prosperous business operation principles that are highly regarded by our customers and employees.

Product Details

TOPWIN pays great attention to the details of 0.6~0.78inch Monochrome Oled. The following will show you one by one.

Application of the Product

TOPWIN's 0.6~0.78inch Monochrome Oled can be applied to different fields.

With a focus on customers, TOPWIN analyzes problems from the perspective of customers. And we provide customers with comprehensive, professional and excellent solutions.

Product Comparison

The 0.6~0.78inch Monochrome Oled of TOPWIN has the following advantages compared with 0.6~0.78inch Monochrome Oled in the market.

Enterprise Advantages

In recent years, TOPWIN selected and trained outstanding talents from many well-known institutions at home and abroad, who are of great importance to our talents team. This makes a contribution to our company's sustainable development.

TOPWIN receives trust and favor from new and old customers based on high-quality products, reasonable price, and professional services.

Our company perseveres in the philosophy of 'high quality, sustainable development', and sticks to the spirit of 'being faithful and people-oriented'. We are committed to becoming an outstanding enterprise in the industry.

Founded in TOPWIN has been developing in the industry for years and has built a complete scientific management system.

TOPWIN's products are exported to many countries in Europe, Oceania, Africa, and America.
