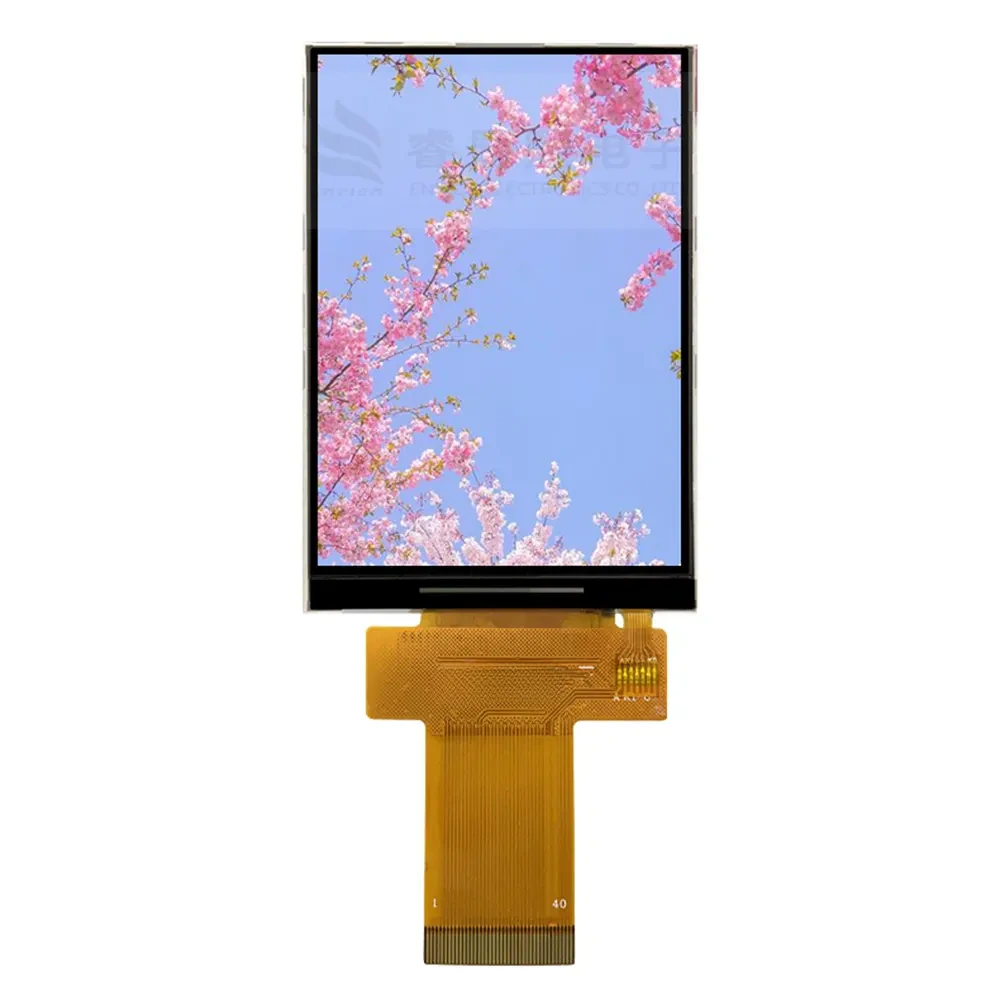

TOPWIN 3.5'' TFT-LCD display 320x480 IC ILI9488 interface MCU
TOPWIN 3.5'' TFT-LCD display 320x480 IC ILI9488 interface MCU
1 LCD Size :3.5” inch
2 Panel Type: TN
3 Resolution:320RGBx480 Pixel
4 Display Mode : Normally White
5 Number of Colors: 262K -
6 Viewing Direction:12 O clock
7 Contrast Ratio :500 -
8 Luminance: 250 cd/m2 Typ.
9 Module Size: 54.96(H)x83.16(V)x2.48(D) mm
10 Panel Active Area :48.96x73.44 mm
11 Pixel Pitch:0.153x0.153 mm
12 Pixel Arrangement: RGB-stripe 1
13 Driver IC :ILI9488
14 Light Source :6-LED light
15: Interface: MCU 8080 16BIT,8BIT
16: Operating Temperature:-20~+70 ℃ - 20
17: Storage Temperature:-30~+80 ℃
- 产品描述
- Features
-
1 LCD Size :3.5” inch
2 Panel Type: TN
3 Resolution:320RGBx480 Pixel
4 Display Mode : Normally White
5 Number of Colors: 262K -
6 Viewing Direction:12 O clock
7 Contrast Ratio :500 -
8 Luminance: 250 cd/m2 Typ.
9 Module Size: 54.96(H)x83.16(V)x2.48(D) mm
10 Panel Active Area :48.96x73.44 mm
11 Pixel Pitch:0.153x0.153 mm
12 Pixel Arrangement: RGB-stripe 1
13 Driver IC :ILI9488
14 Light Source :6-LED light
15: Interface: MCU 8080 16BIT,8BIT
16: Operating Temperature:-20~+70 ℃ - 20
17: Storage Temperature:-30~+80 ℃
