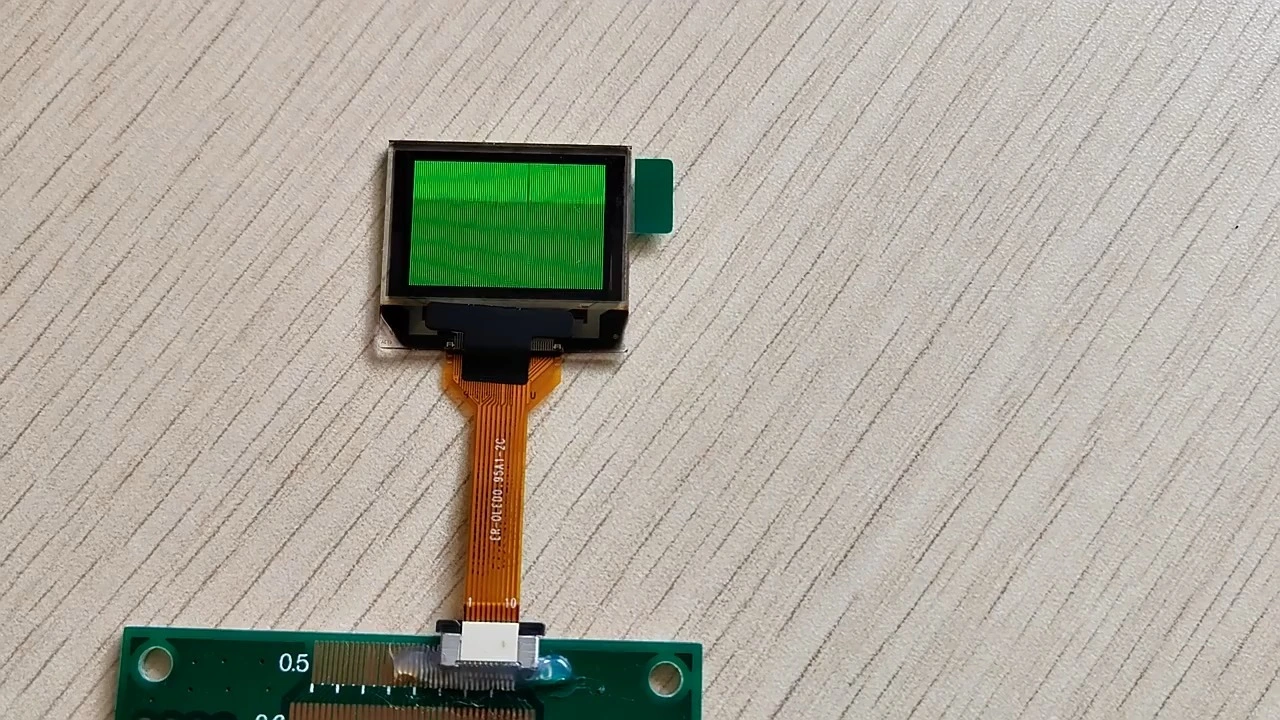

0.95inch full color oled display panel SSD1331Z Multiple interfaces

1) Outline Drawing: According to the annexed outline drawing

2) Number of Pixels: 96 (RGB) × 64

3) Panel Size: 25.70 × 22.20 × 1.45 (mm)

4) Active Area: 20.14 × 13.42 (mm)

5) Pixel Pitch: 0.07 × 0.21 (mm)

6) Pixel Size: 0.05 × 0.19 (mm)

7) Driver IC: SSD1331Z

8) Interface: 8-bit 68XX/80XX Parallel, 4-wire SPI

9) Color:Full color

10) -40~85℃

INQUIRY
  • 产品描述
  • Features

  • 1) Outline Drawing: According to the annexed outline drawing

    2) Number of Pixels: 96 (RGB) × 64

    3) Panel Size: 25.70 × 22.20 × 1.45 (mm)

    4) Active Area: 20.14 × 13.42 (mm)

    5) Pixel Pitch: 0.07 × 0.21 (mm)

    6) Pixel Size: 0.05 × 0.19 (mm)

    7) Driver IC: SSD1331Z

    8) Interface: 8-bit 68XX/80XX Parallel, 4-wire SPI

    9) Color:Full color

    10) -40~85℃
