TOPWIN

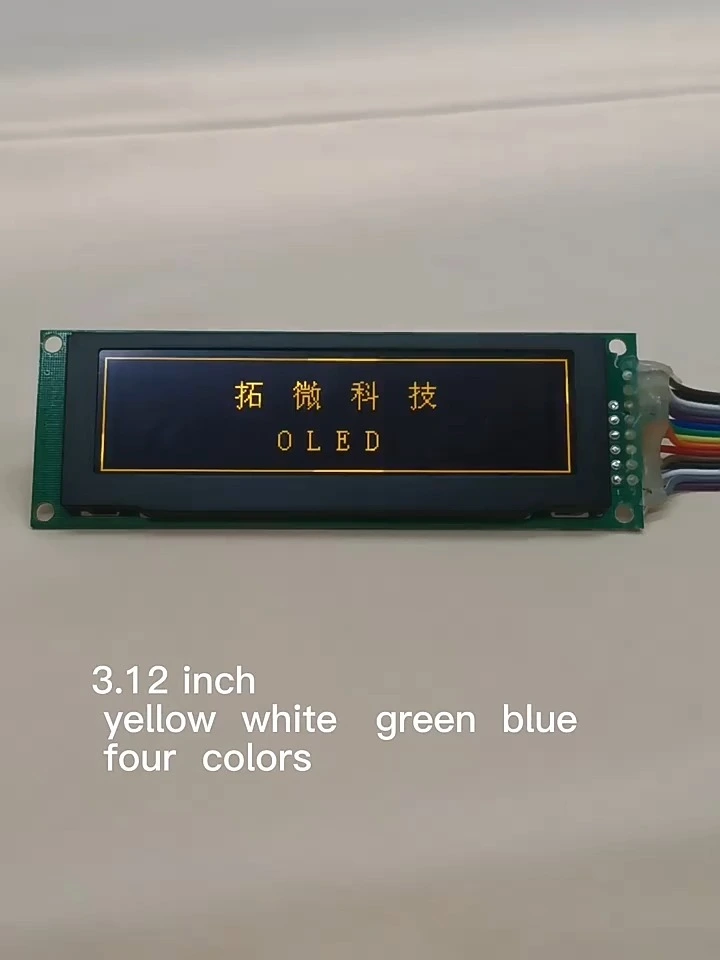

TOPWIN 3.12inch COF oled display module

Outline Drawing: 100.5(W)x33.5(H)x6.3Max(T) mm

View Area: 78.78(W)x21.18(H) mm

Active Area: 76.78(W)x19.18(H) mm

Lattice: 256dots x 64dots --

Pixel Pitch: 0.30(W)x0.30(H) mm

Pixel Size: 0.28(W)x0.28(H) mm

Display Mode: Passive Matrix—OLED

Color:Yellow/Blue/White/Green

Interface :8-Bit 68XX/80XX Parallel、 SPI

Drive Duty: 1/64

Driver IC :SSD1322

Shell :0.5T

INQUIRY

产品描述
Features

Outline Drawing: 100.5(W)x33.5(H)x6.3Max(T) mm

View Area: 78.78(W)x21.18(H) mm

Active Area: 76.78(W)x19.18(H) mm

Lattice: 256dots x 64dots --

Pixel Pitch: 0.30(W)x0.30(H) mm

Pixel Size: 0.28(W)x0.28(H) mm

Display Mode: Passive Matrix—OLED

Color:Yellow/Blue/White/Green

Interface :8-Bit 68XX/80XX Parallel、 SPI

Drive Duty: 1/64

Driver IC :SSD1322

Shell :0.5T
