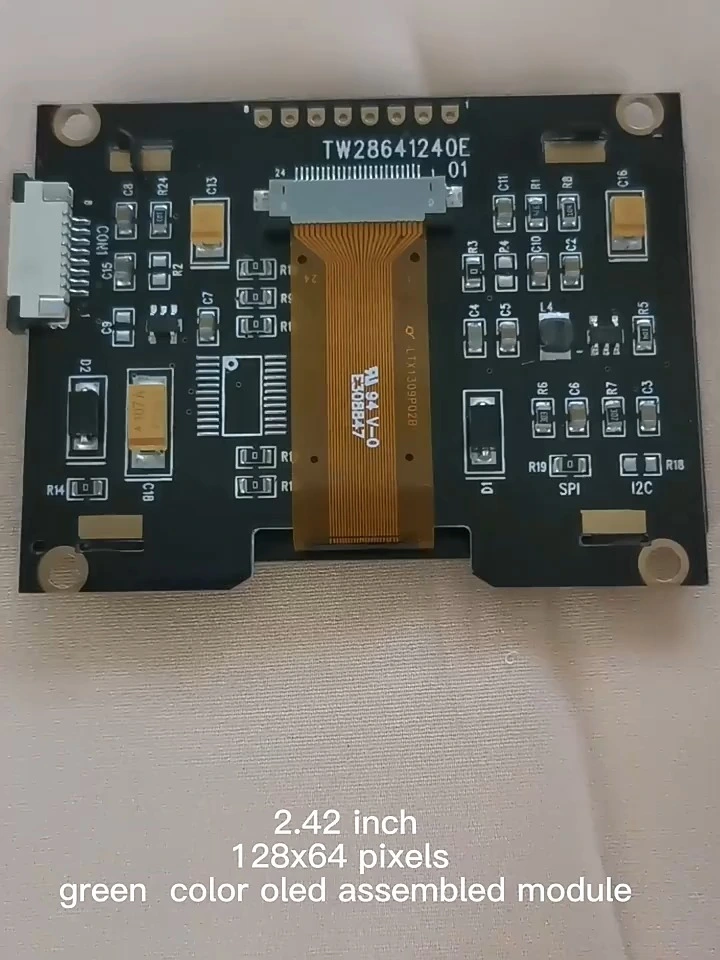

TOPWIN 2.42inch oled module 8pin SSD1308 SPI I2C

Outline Drawing ：62.2(W)x47.0(H)x6.3Max(T) mm

View Area： 57.01(W)x29.48(H) mm

Active Area ：55.01(W)x27.49(H) mm

Lattice ：128dots x 64dots --

Pixel Pitch ：0.43(W)x0.43(H) mm

Pixel Size ：0.40(W)x0.40(H) mm

Display Mode：Passive Matrix—OLED

Color:Blue/Yellow/White/Green

Interface:4-Wire SPI、I2C

Drive Duty:1/64

Driver IC:SSD1309

INQUIRY
  • 产品描述
  • Features

  • Outline Drawing ：62.2(W)x47.0(H)x6.3Max(T) mm

    View Area： 57.01(W)x29.48(H) mm

    Active Area ：55.01(W)x27.49(H) mm

    Lattice ：128dots x 64dots --

    Pixel Pitch ：0.43(W)x0.43(H) mm

    Pixel Size ：0.40(W)x0.40(H) mm

    Display Mode：Passive Matrix—OLED

    Color:Blue/Yellow/White/Green

    Interface:4-Wire SPI、I2C

    Drive Duty:1/64

    Driver IC:SSD1309
