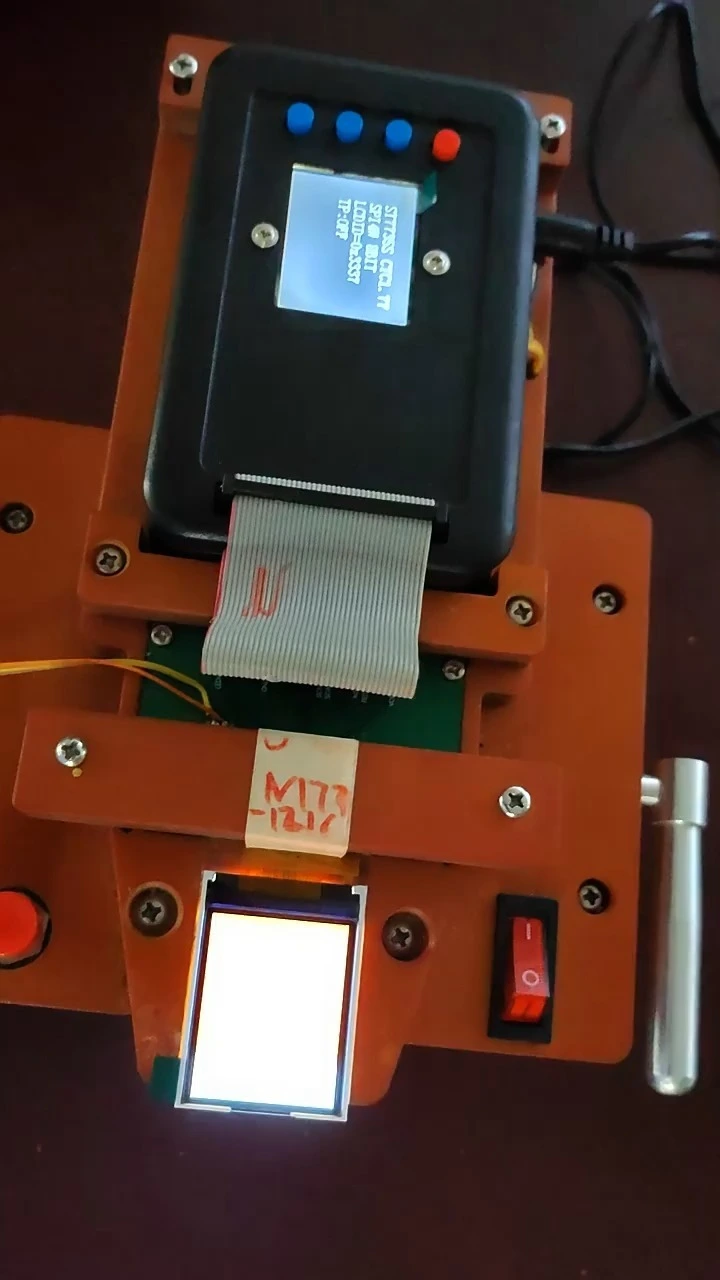

TOPWIN 1.77inch LCD display 128x160
1.77'' TFT display 1.77inch TFT display
1 LCD Size 1.77 inch(Diagonal) -
2 Display Mode TRANSMISSIVE NORMAL WHITE -
3 Resolution 128(H)RGB x 160(V) -
4 Dot pitch 0.219(H) x 0.219(V) mm -
5 Active area 28.032(H) x 35.04(V) mm -
6 Module size 34(H) x 45.83(V) x2.2(D) mm -
7 Color arrangement RGB Vtertical stripe -
8 Interface 4 Line SPI -
9 Drive IC ST7735 -
10 Luminance(cd/m2)
11 Viewing Direction 12 O'CLOCK
12 Backlight 2 White LED
13 Operating Temp. -20℃~ + 70℃
14 Storage Temp. -30℃~+ 80℃
- 产品描述
- Features
-
1 LCD Size 1.77 inch(Diagonal) -
2 Display Mode TRANSMISSIVE NORMAL WHITE -
3 Resolution 128(H)RGB x 160(V) -
4 Dot pitch 0.219(H) x 0.219(V) mm -
5 Active area 28.032(H) x 35.04(V) mm -
6 Module size 34(H) x 45.83(V) x2.2(D) mm -
7 Color arrangement RGB Vtertical stripe -
8 Interface 4 Line SPI -
9 Drive IC ST7735 -
10 Luminance(cd/m2)
11 Viewing Direction 12 O'CLOCK
12 Backlight 2 White LED
13 Operating Temp. -20℃~ + 70℃
14 Storage Temp. -30℃~+ 80℃
