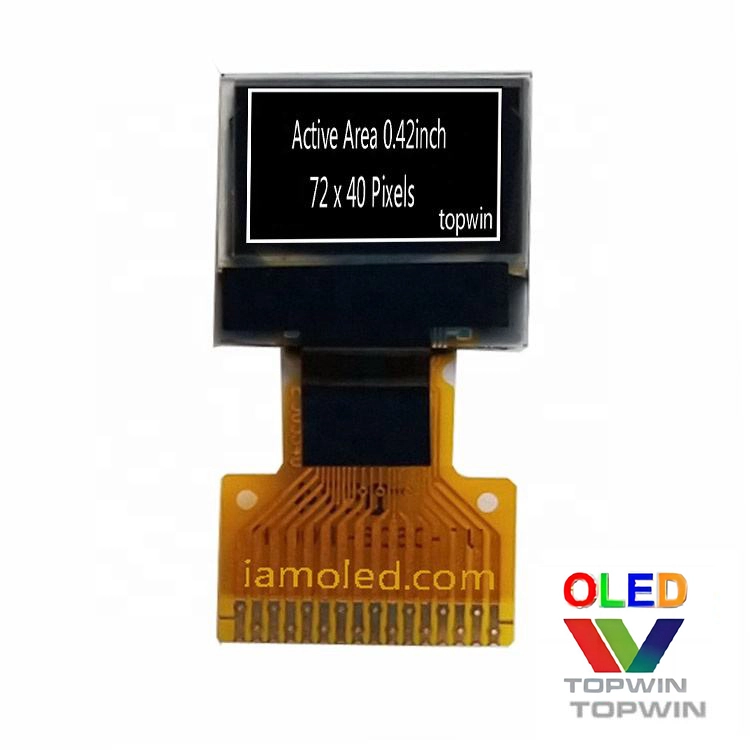

0.42inch 72x40 oled display white soldering 16pin SSD1315 SPI I2C interface
TOPWIN proudly presents the QG-7240TSWPG01, a 0.42-inch OLED display designed for professional applications. This display features a 16-pin soldering interface and supports both 4-wire SPI and I2C connectivity options.
Features:
Size: 0.42inch oled display soldering 16pin
Model Number: QG-7240TSWPG01
Color: White
Number of Pixels: 72x40
Driver IC: SSD1315
Interface: 4-wire SPI, I2C
Panel Size: 12 x11 x1.25 (mm)
Active Area: 9.196 x 5.18 (mm)
- 产品描述
- Features
-
Product Display
TOPWIN proudly presents the QG-7240TSWPG01, a 0.42-inch OLED display designed for professional applications. This display features a 16-pin soldering interface and supports both 4-wire SPI and I2C connectivity options.
With a pixel resolution of 72x40 and a reliable SSD1315 driver IC, it delivers crisp and precise visuals. The panel dimensions measure 12x11x1.25 mm, with an effective viewing area of 9.196x5.18 mm. The pixel pitch is 0.128x0.13 mm, and the pixel size is 0.108x0.11 mm.
Operating flawlessly in a wide temperature range from -40°C to 85°C, it is well-suited for applications in demanding environments.
Related Parameters
Display Type: 0.42inch oled display soldering 16pin Driver IC: SSD1315 Display Mode: Passive Matrix Panel Size: 12 x11 x1.25 (mm) Model Number: QG-7240TSWPG01 Active Area: 9.196 x 5.18 (mm) Interface: 4-wire SPI, I2C Pixel Pitch: 0.128 x 0.13(mm) Drive Duty: 1/40 duty Pixel Size: 0.108 x 0.11 (mm) Number of Pixels: 72X 40 Operating Temperature. -40-85°
Regular FAQ
TOPWIN TECHNOLOGY was established in 2005, we have been specializing in the electronic display industry for 18 years. Our products are exported to over 30 countries all over the world. We have strict production & quality control process, experienced team of professional engineers, efficient warehouse management to ensure that high quality products can be delivered to our customers quickly.
1Can I get samples from your factory?Sure! We can offer sample at a very favourable price, and send them out within 1~2 working days.2If products have some quality problem, how would you deal with?We will provide free replacement.3How long is the delivery time?Samples: 1~2 working days. Official orders: We keep most of the standard models in stock. For big order, we will discuss with you separetely.4What is the standard of package?Export standard package or special package according to customer requirement.5What kind of certificate you have?We have ISO9001, ISO14001, ISO45001, RoHS6What’s the trade terms?DAP. (DDP needs to be negotiated separately)7What is the delivery method?We have agreements with many international couriers and can offer the most economical rates. And will provide tracking number after delivery.8What is the payment method?For small orders: T/T in advance. For big orders: 30% deposit in advance, balance before delivery.9Is there a MOQ?No.10Is it possible to customize?Sure! We have a team of professional engineers who customize displays for different industries all over the world.11Is there technical support?We will sent full specification,drawing and user guide. Our professional engineers will provide services at anytime. -
Features:
Size: 0.42inch oled display soldering 16pin
Model Number: QG-7240TSWPG01
Color: White
Number of Pixels: 72x40
Driver IC: SSD1315
Interface: 4-wire SPI, I2C
Panel Size: 12 x11 x1.25 (mm)
Active Area: 9.196 x 5.18 (mm)
