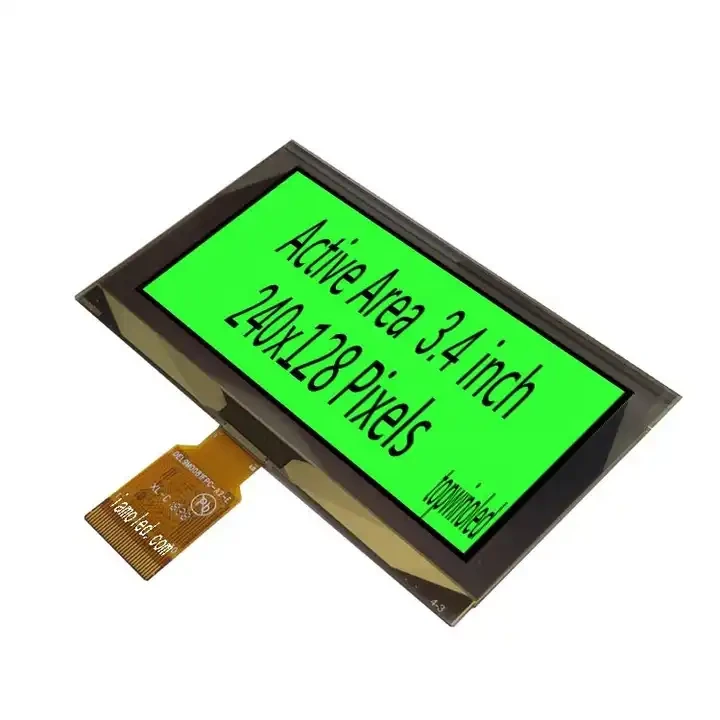

3.4inch oled display 240x128 SSD1322Z2 30pin Parallel/4-wireSPI
1 Diagonal Size 3.4 Inch
2 Resolution 240(H) x 128(V) Dots
3 Active Area 75.58 (W) x 40.30(H) mm²
4 Outline Dimension (Panel) 89.52 (W) x 54.41(H) mm²
5 Pixel Pitch 0.315 (W) x 0.315(H) mm²
6 Pixel Size 0.290 (W) x 0.290 (H) mm²
7 Driver IC SSD1322Z2 -
8 Display Color Green/Yellow -
9 Grayscale 4 Bit
10 Interface Parallel / Serial -
11 IC package type COG with ZIF tail -
12 Thickness 2.05±0.2 mm
- 产品描述
- Features
-
1 Diagonal Size 3.4 Inch
2 Resolution 240(H) x 128(V) Dots
3 Active Area 75.58 (W) x 40.30(H) mm²
4 Outline Dimension (Panel) 89.52 (W) x 54.41(H) mm²
5 Pixel Pitch 0.315 (W) x 0.315(H) mm²
6 Pixel Size 0.290 (W) x 0.290 (H) mm²
7 Driver IC SSD1322Z2 -
8 Display Color Green/Yellow -
9 Grayscale 4 Bit
10 Interface Parallel / Serial -
11 IC package type COG with ZIF tail -
12 Thickness 2.05±0.2 mm
