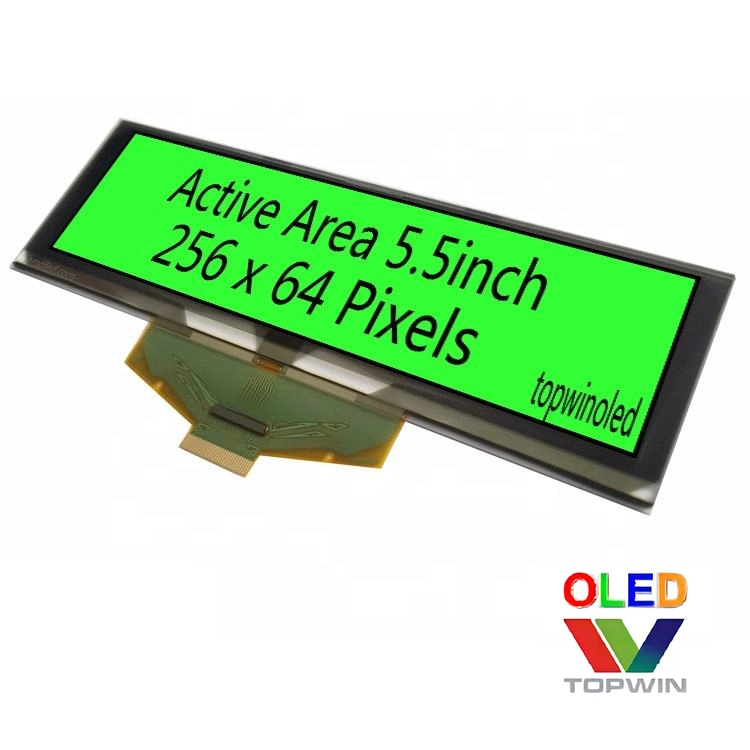

5.5inch oled display screen 256x64 green/blue/yellow 30 pin 16 gray scales oled display I2C SPI parallel Interface driver IC SSD1322 1

5.5inch oled display screen 256x64 green/blue/yellow 30 pin 16 gray scales oled display I2C SPI parallel Interface driver IC SSD1322 2

5.5inch oled display screen 256x64 green/blue/yellow 30 pin 16 gray scales oled display I2C SPI parallel Interface driver IC SSD1322 3

5.5inch oled display screen 256x64 green/blue/yellow 30 pin 16 gray scales oled display I2C SPI parallel Interface driver IC SSD1322

Features:

Size: 5.5inch

Model Number: UG-5664ASGGF01

Color: Green/Blue/Yellow

Resolution: 256x64

Driver IC: SSD1322

Interface: 8-bit 68XX/80XX Parallel, 3-/4-wire SPI

Panel Size: 146.00 × 45.00 × 2.00 (mm)

Active Area: 135.65 × 33.89 (mm)

Inquiry

Write a Review

Product Display

Discover the versatility of our 5.5inch Monochrome OLED Display, the UG-5664ASGGF01, proudly brought to you by TOPWIN. With its striking Green, Blue, and Yellow color options, this display is a perfect fit for a wide range of devices. Boasting a sharp 256x64 resolution and SSD1322 Driver IC, it guarantees exceptional visuals. Its adaptable interface supports both 8-bit 68XX/80XX Parallel and 3-/4-wire SPI connections. Compact at 146.00 x 45.00 x 2.00 mm and resilient in temperatures from -40°C to 85°C, this OLED display is an ideal choice for various applications, delivering quality and innovation you can trust.

4 (6)

1 (8)

3 (8)

7 (2)

5 (6)

6 (4)

Related Parameters

Size:	1.69inch	Panel Size:	39.90×34.00×1.60(mm)
Model Number:	UG-6028GDEBF02	Active Area:	33.575×26.864(mm)
Color	Full color	Pixel Pitch:	0.07 x 0.21 (mm)
Resolution:	160x128	Pixel Size:	0.045 x 0.194 (mm)
Driver IC:	SEPS525	Operating Temperature:	-40~85°
Interface:	Parallel, 4-wire SPI, 6-bit RGB I/F	Origin:	China

Related Parameters

Size:	5.5inch	Active Area:	135.65 × 33.89 (mm)
Model Number:	UG-5664ASGGF01	Pixel Pitch:	0.53 × 0.53 (mm)
Color	Green/Blue/Yellow	Pixel Size:	0.50 × 0.50 (mm)
Resolution:	256x64	Operating Temperature:	-40~85°
Driver IC:	SSD1322	Operating Temperature:	-40~85°
Interface:	8-bit 68XX/80XX Parallel, 3-/4-wire SPI	Origin:	China
Panel size:	146.00 × 45.00 × 2.00 (mm)
