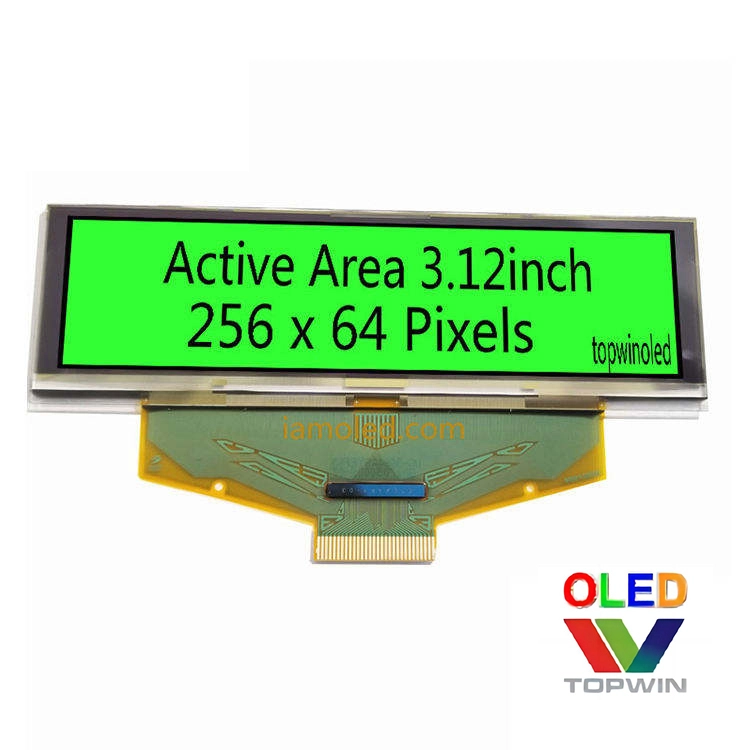

3.12inch oled display panel 256x64 30 pin driver IC SSD1322 1

3.12inch oled display panel 256x64 30 pin driver IC SSD1322 2

3.12inch oled display panel 256x64 30 pin driver IC SSD1322 3

3.12inch oled display panel 256x64 30 pin driver IC SSD1322 4

3.12inch oled display panel 256x64 30 pin driver IC SSD1322

Features:

Size: 3.12inch connector type 30pin

Model Number: QG-5664ASWDG01

Color: White/blue/yellow/green

Resolution: 256x64

Driver IC: SSD1322

Interface: Parallel, 4-wire SPI

Panel Size: 88x27.8x2

Active Area: 76.78X19.18

Inquiry

Write a Review

Product Display

Elevate your visual solutions with the TOPWIN 3.12" OLED display (Model Number: QG-5664ASWDG01). With a sleek and compact design measuring 88x27.8x2mm, this display packs a punch with its impressive 256x64 resolution and a pixel pitch of 0.3x0.3mm, ensuring every detail is rendered crisply and vividly. Whether you prefer White, Green, Blue, or Yellow, our display offers a spectrum of colors to suit your preferences. The SSD1322 Driver IC ensures smooth performance, and the versatile interface options of Parallel and 4-wire SPI make it adaptable for a range of applications. Even in extreme conditions, with an operating temperature range from -40°C to 85°C, this display excels. Choose TOPWIN for cutting-edge display technology that elevates your projects.

1 (6)

2 (5)

3 (5)

4 (4)

5 (4)

6 (3)

Related Parameters

Size:	1.69inch	Panel Size:	39.90×34.00×1.60(mm)
Model Number:	UG-6028GDEBF02	Active Area:	33.575×26.864(mm)
Color	Full color	Pixel Pitch:	0.07 x 0.21 (mm)
Resolution:	160x128	Pixel Size:	0.045 x 0.194 (mm)
Driver IC:	SEPS525	Operating Temperature:	-40~85°
Interface:	Parallel, 4-wire SPI, 6-bit RGB I/F	Origin:	China

Related Parameters

Size:	3.12 inch Connector 30pin	Active Area:	76.78X19.18
Model Number:	QG-5664ASWDG01	Pixel Pitch:	0.3 x 0.3
Color	White/Green/Blue/Yellow	Pixel Size:	0.28 x 0.28
Resolution:	256x64	Operating Temperature:	-40~85°
Driver IC:	SSD1322	Operating Temperature:	-40~85°
Interface:	Parallel, 4-wire SPI	Origin:	China
Panel size:	88x27.8x2
