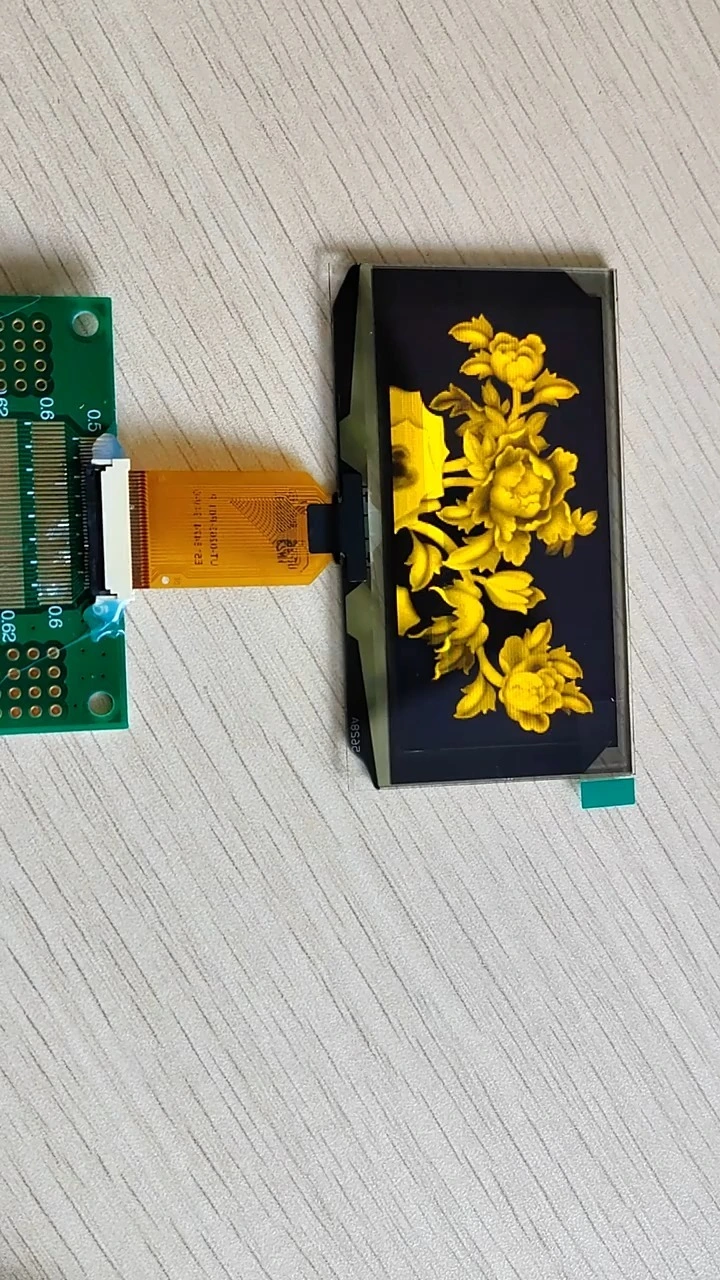

2.7-Inch Yellow OLED Display with 128x64 Resolution, SSD1325, Parallel/SPI Interface and COF Technology
1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 128 × 64
3) Module Size : 73.00 × 67.87 × 2.675 (mm)
4) Panel Size : 73.00 × 41.86 × 2.00 (mm) including “Anti-Glare polarizer”
5) Active Area : 61.41 × 30.69 (mm)
6) Pixel Pitch : 0.48 × 0.48 (mm)
7) Pixel Size : 0.45 × 0.45 (mm)
7) Driver IC: SSD1325
8) Interface: Parallel/SPI
9) Color:yellow
10)Operating Temperature:-40~70℃
11)Storage Temperature:-40~85℃
- 产品描述
- Features
-
1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 128 × 64
3) Module Size : 73.00 × 67.87 × 2.675 (mm)
4) Panel Size : 73.00 × 41.86 × 2.00 (mm) including “Anti-Glare polarizer”
5) Active Area : 61.41 × 30.69 (mm)
6) Pixel Pitch : 0.48 × 0.48 (mm)
7) Pixel Size : 0.45 × 0.45 (mm)
7) Driver IC: SSD1325
8) Interface: Parallel/SPI
9) Color:yellow
10)Operating Temperature:-40~70℃
11)Storage Temperature:-40~85℃
