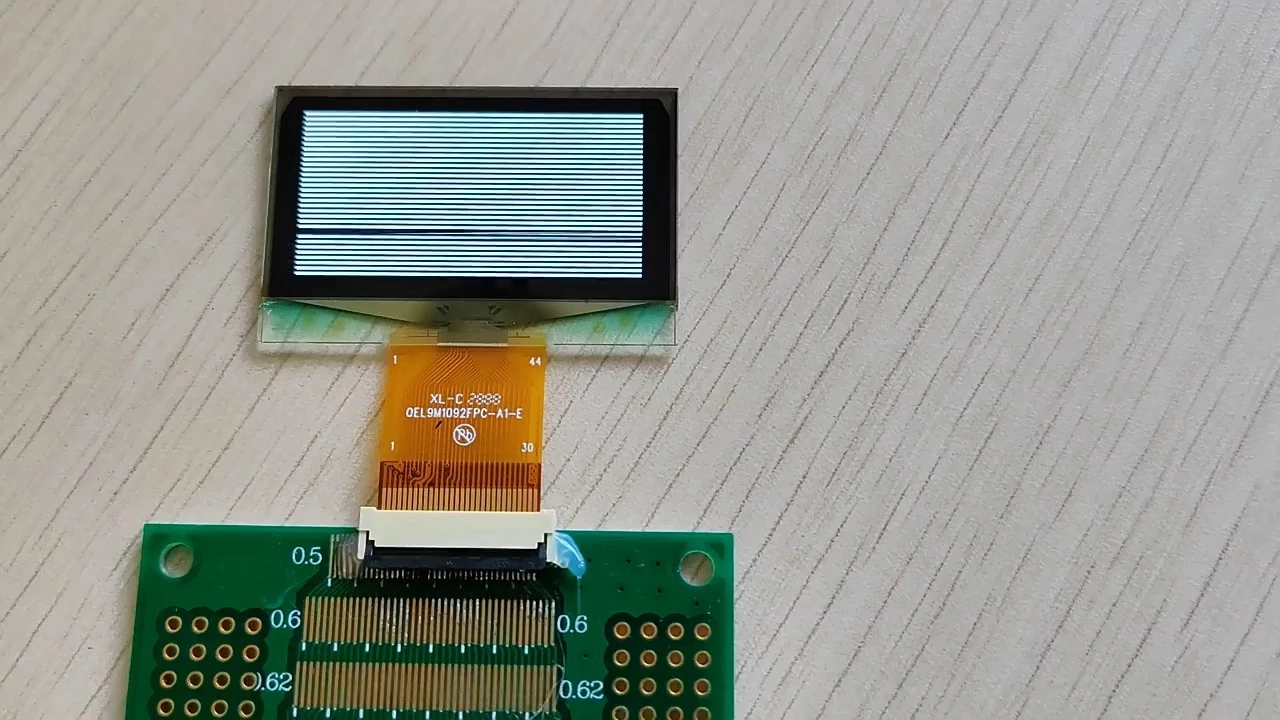

1.54-Inch OLED Display Panel with 128x64 Pixels, 24-Pin Interface, and CH1116 Driver IC

1) Outline Drawing: According to the annexed outline drawing

2) Number of Pixels: 128 x 64

3) Panel Size: 42.04 x 27.22  1.45 (mm)

4) Active Area: 35.05 x 17.516 (mm)

5) Pixel Pitch: 0.274 x 0.274 (mm)

6) Pixel Size: 0.254 x 0.254 (mm)

7) Driver IC: CH1116

8) Interface: 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C

9) Color:White

10) -40~85℃

INQUIRY
  • 产品描述
  • Features

  • 1) Outline Drawing: According to the annexed outline drawing

    2) Number of Pixels: 128 x 64

    3) Panel Size: 42.04 x 27.22  1.45 (mm)

    4) Active Area: 35.05 x 17.516 (mm)

    5) Pixel Pitch: 0.274 x 0.274 (mm)

    6) Pixel Size: 0.254 x 0.254 (mm)

    7) Driver IC: CH1116

    8) Interface: 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C

    9) Color:White

    10) -40~85℃
