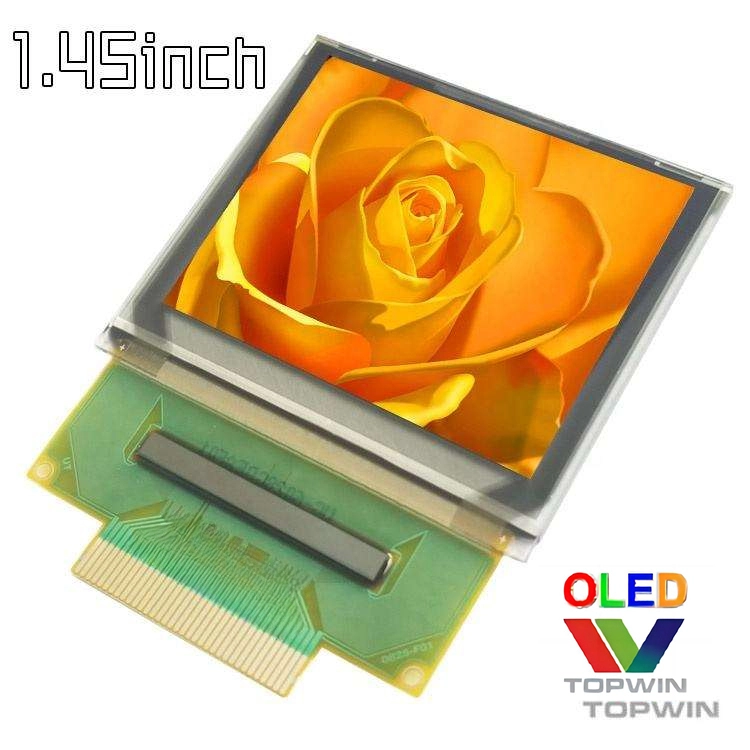

1.45inch full color OLED display, 160 × 128 resolution, 35pin，Driver IC SEPS525, connecter type 1

1.45inch full color OLED display, 160 × 128 resolution, 35pin，Driver IC SEPS525, connecter type 2

1.45inch full color OLED display, 160 × 128 resolution, 35pin，Driver IC SEPS525, connecter type 3

1.45inch full color OLED display, 160 × 128 resolution, 35pin，Driver IC SEPS525, connecter type 4

1.45inch full color OLED display, 160 × 128 resolution, 35pin，Driver IC SEPS525, connecter type

Start your project off with a brilliant full color oled display

Description: Get your project started off right with the UG-6028GDEAF01. 1.45” full color OLED display. This display module is 1.45 inch in size and boasts a resolution of 160x128 pixels. This display is a perfect fit for consumer electronics or industrial devices

Features:

Size: 1.45inch

Model Number: UG-6028GDEAF01

Color: Full color

Resolution: 160x128

Driver IC: SEPS525

Interface: Parallel, 4-wire SPI, 6-bit RGB I/F

Panel Size: 35.80 x 30.80 x 1.60 (mm)

Active Area: 28.78 x 23.024 (mm)

Inquiry

Write a Review

Product Display

1 (12)

2 (7)

3 (10)

4 (8)

5 (8)

6 (5)

Related Parameters

Size:	1.69inch	Panel Size:	39.90×34.00×1.60(mm)
Model Number:	UG-6028GDEBF02	Active Area:	33.575×26.864(mm)
Color	Full color	Pixel Pitch:	0.07 x 0.21 (mm)
Resolution:	160x128	Pixel Size:	0.045 x 0.194 (mm)
Driver IC:	SEPS525	Operating Temperature:	-40~85°
Interface:	Parallel, 4-wire SPI, 6-bit RGB I/F	Origin:	China

Related Parameters

Size:	1.45inch	Panel size:	35.80 x 30.80 x 1.60 (mm) including ”Anti-Glare polarizer”
Model Number:	UG-6028GDEAF01	Active Area:	28.78x23.024 (mm)
Color	Full color	Pixel Pitch:	0.06 x 0.18 (mm)
Resolution:	160x128	Pixel Size:	0.04 x 0.164 (mm)
Driver IC:	SEPS525	Operating Temperature:	-40~85°
Interface:	8-/9-bit 80XX Parallel, 4-wire SPI, 6-bit RGB I/F	Operating Temperature:	-40~85°
Module Size:	35.80x 45.30x1.60 (mm)	Origin:	China
