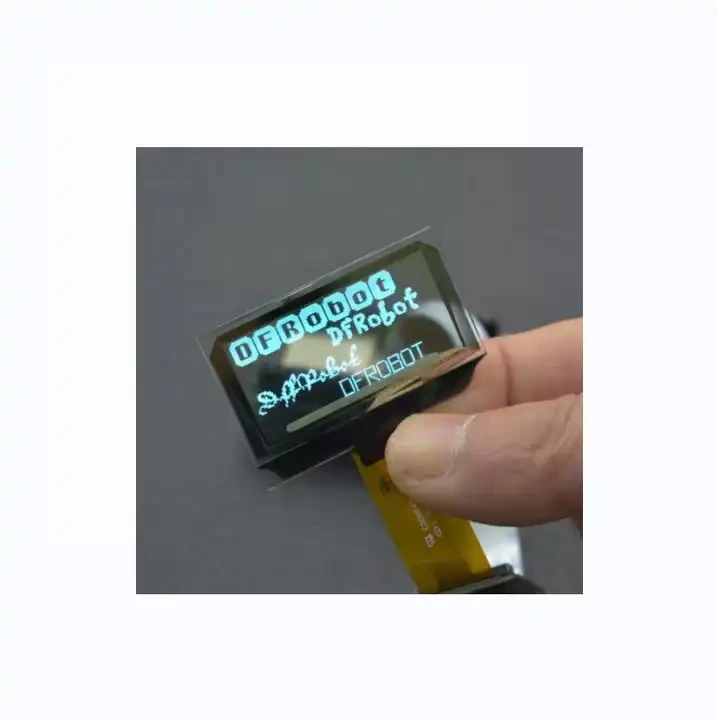

transparent oled display 1.5inch 128x56 driver IC SSD1309 with Multiple interfaces
1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 128 x 56
3) Module Size : 42.04 x 63.22 x1.25 (mm)
4) Panel Size : 42.04 x 27.22 x 1.25 (mm)
5) Active Area : 35.05 x 15.32 (mm)
6) Pixel Pitch : 0.274 x 0.274 (mm)
7) Pixel Size : 0.254 x 0.254 (mm)
7) Driver IC: SSD1309
8) Interface: I2C, SPI, Parallel
9) Color:transparent
10) -40~85℃
- 产品描述
- Features
-
1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 128 x 56
3) Module Size : 42.04 x 63.22 x1.25 (mm)
4) Panel Size : 42.04 x 27.22 x 1.25 (mm)
5) Active Area : 35.05 x 15.32 (mm)
6) Pixel Pitch : 0.274 x 0.274 (mm)
7) Pixel Size : 0.254 x 0.254 (mm)
7) Driver IC: SSD1309
8) Interface: I2C, SPI, Parallel
9) Color:transparent
10) -40~85℃
