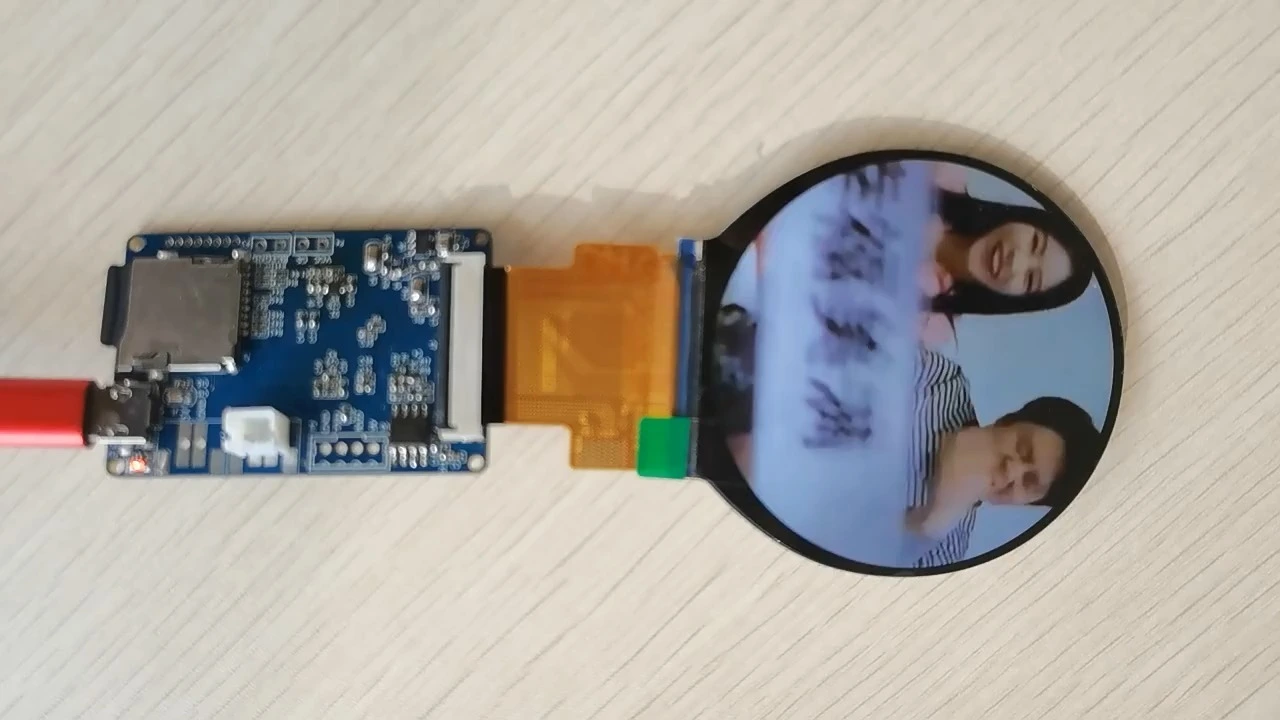

TOPWIN 0.99-inch Circular TFT Display GC9107
1 LCD size: 0.99 inches (diameter) -
2 Display mode is usually black -
3 Resolution 128 (H) RGB x 115 (V) -
4-point pitch: 0.19 (horizontal) × 0.19 (vertical) mm -
5 Effective area: 24.36096 × 21.8868 mm -
6 Module dimensions: 26.71 mm (height) × 26.22 mm (width) × 1.86 mm (thickness) -
7-color arrangement, RGB vertical stripes -
8 SPI interfaces, 4 interfaces -
9 Driver IC GC9107 -
10 Brightness (cd/m²): 450 (typical value)
11 Viewing Direction All Views
12 Backlight 2 White LEDs
13 Operating temperature: -20°C to +70°C
14 Storage temperature: -30°C to +80°C
- 产品描述
- Features
-
1 LCD size: 0.99 inches (diameter) -
2 Display mode is usually black -
3 Resolution 128 (H) RGB x 115 (V) -
4-point pitch: 0.19 (horizontal) × 0.19 (vertical) mm -
5 Effective area: 24.36096 × 21.8868 mm -
6 Module dimensions: 26.71 mm (height) × 26.22 mm (width) × 1.86 mm (thickness) -
7-color arrangement, RGB vertical stripes -
8 SPI interfaces, 4 interfaces -
9 Driver IC GC9107 -
10 Brightness (cd/m²): 450 (typical value)
11 Viewing Direction All Views
12 Backlight 2 White LEDs
13 Operating temperature: -20°C to +70°C
14 Storage temperature: -30°C to +80°C
