TOPWIN 3.67inch character oled display
TOPWIN 3.67inch OLED with US2066 Driver IC - Yellow, White, and Blue Color Options

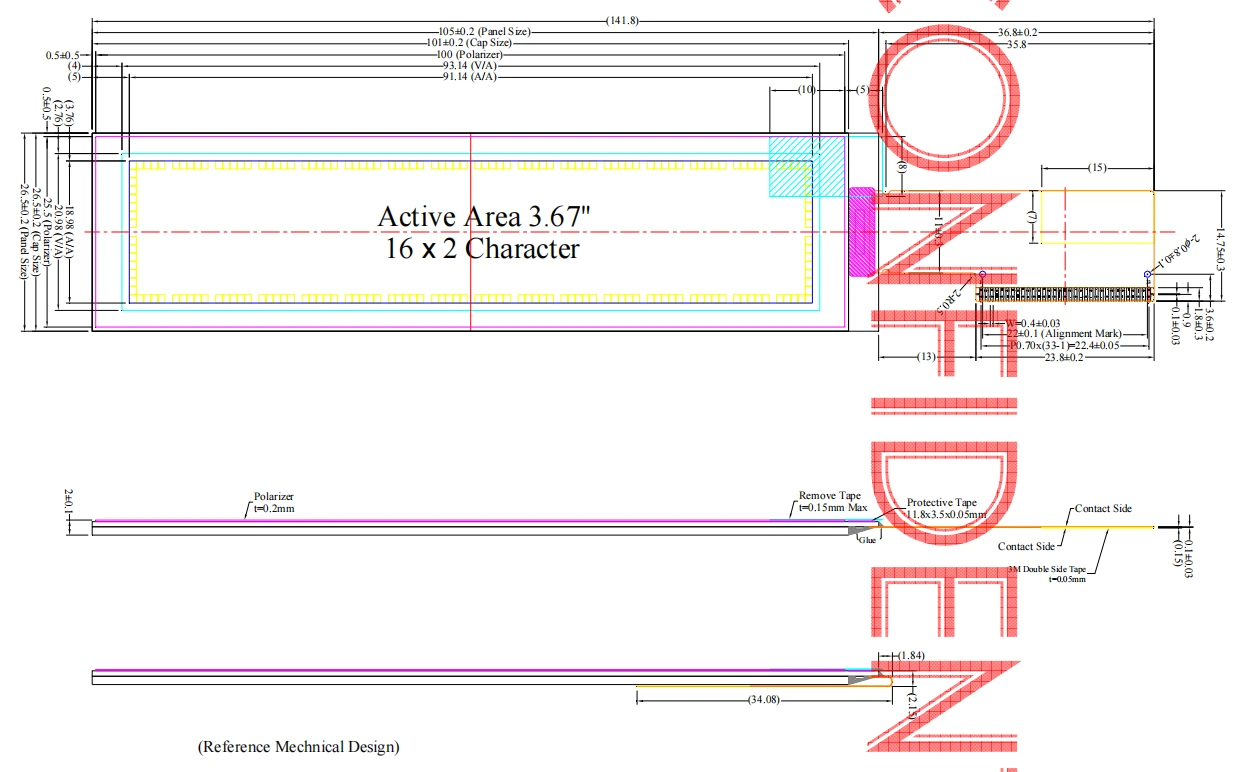

1) Outline Drawing : According to the annexed outline drawing
2) Number of Characters : 16 Characters ( 5 × 8 ) × 2 Lines
3) Module Size : 141.80 × 26.50 × 2.00 (mm)
4) Panel Size : 105.00 × 26.50 × 2.00 (mm)
5) Active Area : 91.14 × 18.98 (mm)
6) Character Pitch : 5.76 × 10.08 (mm)
7) Character Size : 4.74 × 8.90 (mm)
8) Pixel Pitch : 0.96 × 1.12 (mm)
9) Pixel Size : 0.90 × 1.06 (mm)
10) Color: White/Yellow/Blue
11) Interface：4-/8-bit 68XX/80XX Parallel, SPI, I2C
12) Driver IC: US2066
- 产品描述
- Features
-
1) Outline Drawing : According to the annexed outline drawing
2) Number of Characters : 16 Characters ( 5 × 8 ) × 2 Lines
3) Module Size : 141.80 × 26.50 × 2.00 (mm)
4) Panel Size : 105.00 × 26.50 × 2.00 (mm)
5) Active Area : 91.14 × 18.98 (mm)
6) Character Pitch : 5.76 × 10.08 (mm)
7) Character Size : 4.74 × 8.90 (mm)
8) Pixel Pitch : 0.96 × 1.12 (mm)
9) Pixel Size : 0.90 × 1.06 (mm)
10) Color: White/Yellow/Blue
11) Interface：4-/8-bit 68XX/80XX Parallel, SPI, I2C
12) Driver IC: US2066
