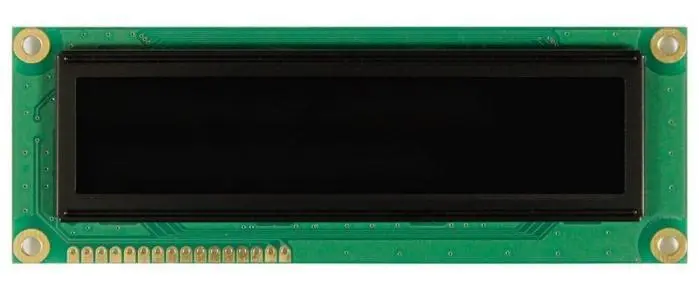

TOPWIN 3.67inch character oled display module

Number of Characters: 16 characters x 2 Lines －

Module dimension: 122.0 x 44.0 x 10.0(MAX) mm

View area: 98.0 x 21.0 mm

Active area" 91.14 x 18.98 mm

Dot size :0.90 x 1.06 mm

Dot pitch: 0.96 x 1.12 mm

Character size: 4.74 x 8.9 mm

Character pitch: 5.76 x 10.08 mm

Panel type： OLED  Monochrome

Duty ：1/16

IC： WS0010-TX

Interface ：6800, option 8080, SPI

Size ：3.67 inch

INQUIRY
  • 产品描述
  • Features

  • Number of Characters: 16 characters x 2 Lines －

    Module dimension: 122.0 x 44.0 x 10.0(MAX) mm

    View area: 98.0 x 21.0 mm

    Active area" 91.14 x 18.98 mm

    Dot size :0.90 x 1.06 mm

    Dot pitch: 0.96 x 1.12 mm

    Character size: 4.74 x 8.9 mm

    Character pitch: 5.76 x 10.08 mm

    Panel type： OLED  Monochrome

    Duty ：1/16

    IC： WS0010-TX

    Interface ：6800, option 8080, SPI

    Size ：3.67 inch
