2.9-inch economical e-ink display module, electronic paper display, e-ink display panel, fast refresh 128×296

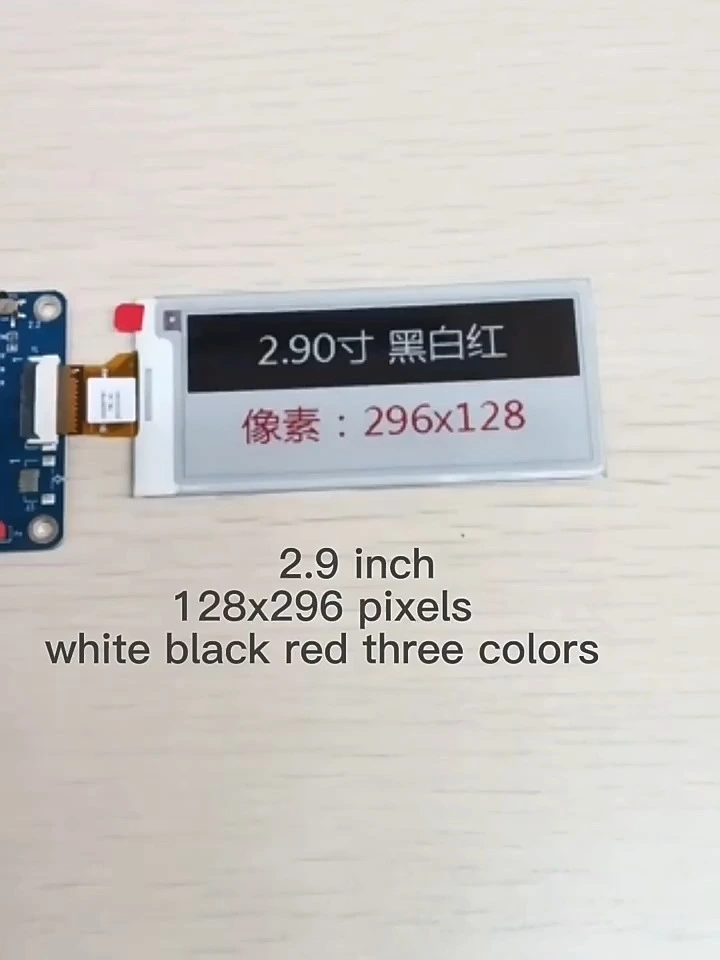

Ultra-thin, high-contrast 2.9-inch e-ink display: 128x296 resolution
Screen size: 2.9 inches
Display resolution: 128 (H) × 296 (V)
Effective area mm: 29.05×66.896
Pixel pitch (mm): 0.227 × 0.226
External dimensions (mm): 36.7 (H) × 79.0 (V) × 0.87 (D)
Interface: SPI
Color options: Black and white / Black and white with red / Black and white with red and yellow
Features:
● White-state reflectance > 30%
● Contrast ratio > 8:1
● Ultra-wide viewing angle, ultra-low power consumption, purely reflective display mode, bistable display,
● Supports landscape and portrait display modes, features built-in display RAM, and offers an ultra-low-current deep-sleep mode.
● The chip features built-in display RAM; waveforms can be stored in the on-chip OTP or written by the MCU.
● Provides a serial peripheral interface
● On-chip oscillator
● The chip features built-in boost and voltage regulation control for generating VCOM, gate-drive, and source-drive voltages.
● I²C master interface for reading an external temperature sensor
- 产品描述
- Features
-
Screen size: 2.9 inches
Display resolution: 128 (H) × 296 (V)
Effective area mm: 29.05×66.896
Pixel pitch (mm): 0.227 × 0.226
External dimensions (mm): 36.7 (H) × 79.0 (V) × 0.87 (D)
Interface: SPI
Color options: Black and white / Black and white with red / Black and white with red and yellow
Features:
● White-state reflectance > 30%
● Contrast ratio > 8:1
● Ultra-wide viewing angle, ultra-low power consumption, purely reflective display mode, bistable display,
● Supports landscape and portrait display modes, features built-in display RAM, and offers an ultra-low-current deep-sleep mode.
● The chip features built-in display RAM; waveforms can be stored in the on-chip OTP or written by the MCU.
● Provides a serial peripheral interface
● On-chip oscillator
● The chip features built-in boost and voltage regulation control for generating VCOM, gate-drive, and source-drive voltages.
● I²C master interface for reading an external temperature sensor
