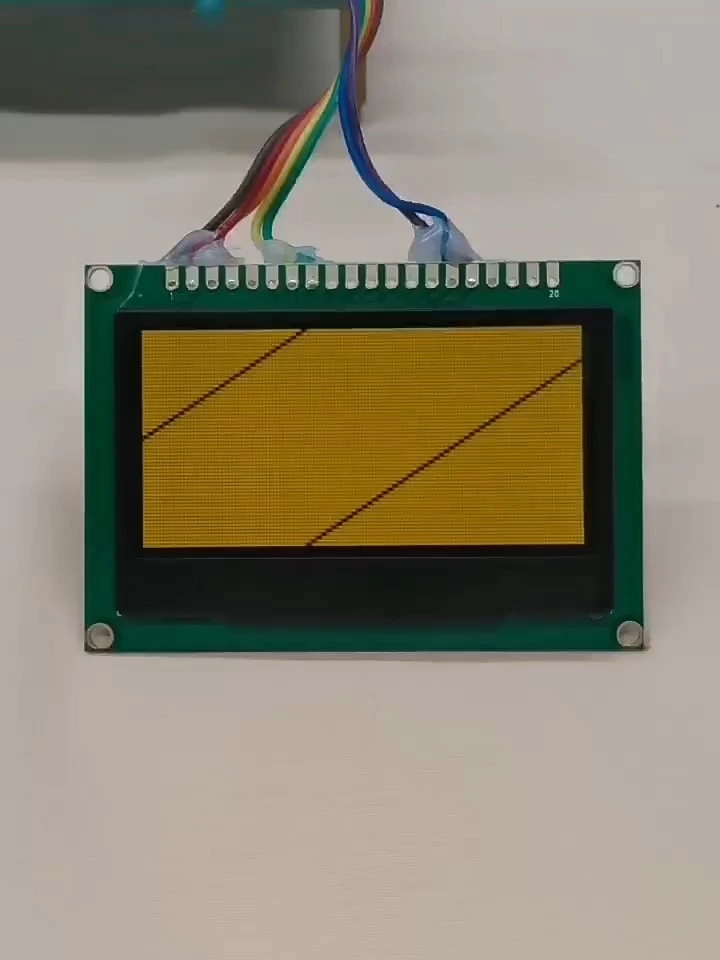

TOPWIN 2.42inch oled module 20pin Parallel/SPI/I2C SSD1309

Outline Drawing 70.5(W)x49.6(H)x6.5Max(T) mm

View Area 57.01(W)x29.49(H) mm

Active Area 55.012(W)x27.49(H) mm

Lattice 128dots x 64dots --

Pixel Pitch 0.43(W)x0.43(H) mm

Pixel Size 0.40(W)x0.40(H) mm

Display Mode Passive Matrix—OLED

Interface 8-Bit 68XX/80XX Parallel、4-Wire SPI、I2C

Drive Duty 1/64

Driver IC SSD1309

INQUIRY

产品描述
Features

Outline Drawing 70.5(W)x49.6(H)x6.5Max(T) mm

View Area 57.01(W)x29.49(H) mm

Active Area 55.012(W)x27.49(H) mm

Lattice 128dots x 64dots --

Pixel Pitch 0.43(W)x0.43(H) mm

Pixel Size 0.40(W)x0.40(H) mm

Display Mode Passive Matrix—OLED

Interface 8-Bit 68XX/80XX Parallel、4-Wire SPI、I2C

Drive Duty 1/64

Driver IC SSD1309
