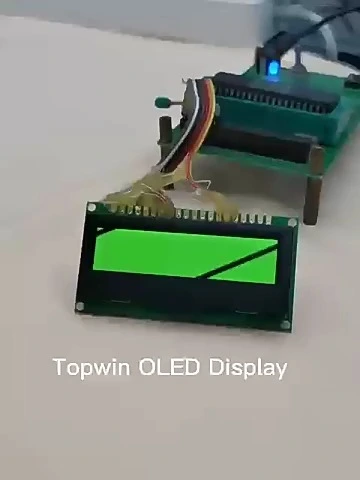

TOPWIN 2.23inch oled display module SPI/I2C/Parallel
small oled display panel, 2.23inch, SSD1315/SSD1309
Outline Drawing :66.5(W)x35(H)x7.8Max(T) mm
View Area: 57.0(W)x15.1(H) mm
Active Area :55.02(W)x13.1(H) mm
Lattice: 128dots x 32dots --
Pixel Pitch: 0.43(W)x0.41(H) mm
Pixel Size: 0.41(W)x0.39(H)
Display Mode: Passive Matrix
Color:Green/Blue/Yellow/White
Interface: 8-Bit 68XX/80XX Parallel、4-Wire SPI、I2C
Drive Duty: 1/32
Driver IC SSD1305/1309
- 产品描述
- Features
-
Outline Drawing :66.5(W)x35(H)x7.8Max(T) mm
View Area: 57.0(W)x15.1(H) mm
Active Area :55.02(W)x13.1(H) mm
Lattice: 128dots x 32dots --
Pixel Pitch: 0.43(W)x0.41(H) mm
Pixel Size: 0.41(W)x0.39(H)
Display Mode: Passive Matrix
Color:Green/Blue/Yellow/White
Interface: 8-Bit 68XX/80XX Parallel、4-Wire SPI、I2C
Drive Duty: 1/32
Driver IC SSD1305/1309
