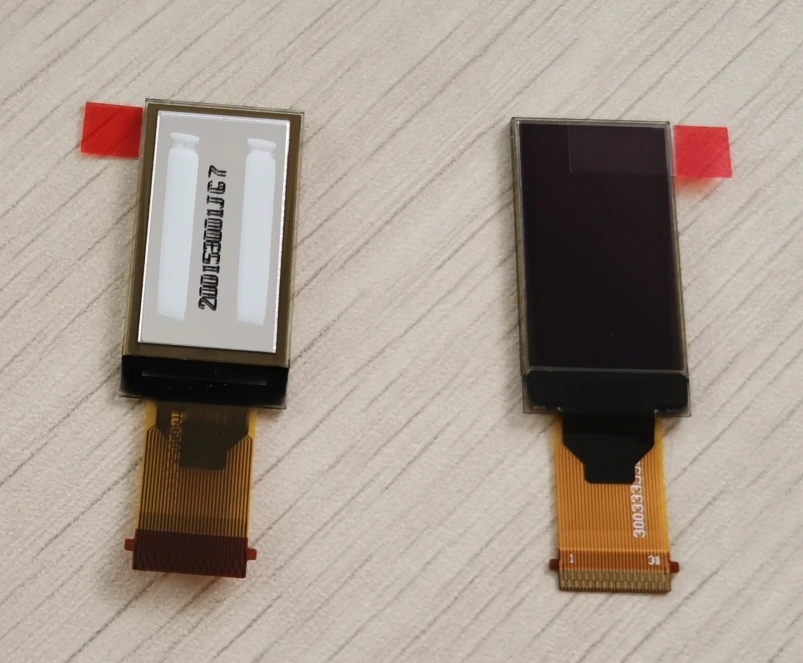

0.96-inch Full-Color OLED Display SSD1357Z
1 dot matrix, 64 x 3 x 128 dots
2-point size: 0.0327 mm (width) × 0.146 mm (height)
3-point pitch: 0.0567 mm (width) × 0.17 mm (height)
4 Activity Area: 10.8624 (width) × 21.736 (height)
5 Panel dimensions: 14.86 inches (width) × 28.4 inches (height)
6 Module dimensions: 14.86 (width) × 43.7 (height) × 1.02 (thickness) mm³
7 Driver IC: SSD1357Z
8 interfaces: 8080-series parallel interface and serial peripheral interface
9 Storage temperature: -40~85°C
10. Wide operating temperature range: -40 to 70°C
- 产品描述
- Features
-
1 dot matrix, 64 x 3 x 128 dots
2-point size: 0.0327 mm (width) × 0.146 mm (height)
3-point pitch: 0.0567 mm (width) × 0.17 mm (height)
4 Activity Area: 10.8624 (width) × 21.736 (height)
5 Panel dimensions: 14.86 inches (width) × 28.4 inches (height)
6 Module dimensions: 14.86 (width) × 43.7 (height) × 1.02 (thickness) mm³
7 Driver IC: SSD1357Z
8 interfaces: 8080-series parallel interface and serial peripheral interface
9 Storage temperature: -40~85°C
10. Wide operating temperature range: -40 to 70°C
