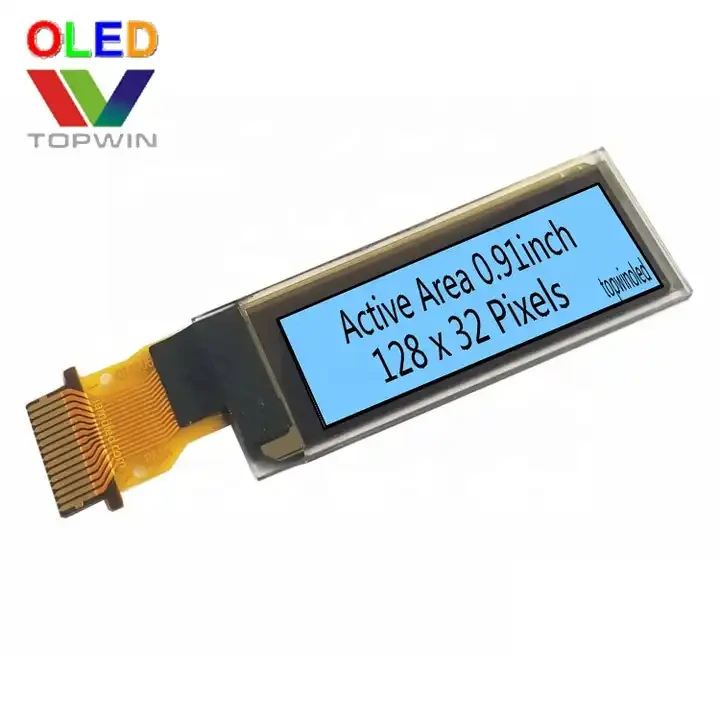

0.91inch oled display screen 128x32 driver IC SSD1306 I2C
1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 128 × 32
3) Module Size : 40.50 × 11.50 × 1.20 (mm)
4) Panel Size : 30.00 × 11.50 × 1.20 (mm) including “Anti-Glare polarizer”
5) Active Area : 22.384 × 5.584 (mm)
6) Pixel Pitch : 0.175 × 0.175 (mm)
7) Pixel Size : 0.159 × 0.159 (mm)
8) Driver IC: SSD1306
9) Interface: I2C
10) Color:White/Blue
11) -40~85℃
- 产品描述
- Features
-
1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 128 × 32
3) Module Size : 40.50 × 11.50 × 1.20 (mm)
4) Panel Size : 30.00 × 11.50 × 1.20 (mm) including “Anti-Glare polarizer”
5) Active Area : 22.384 × 5.584 (mm)
6) Pixel Pitch : 0.175 × 0.175 (mm)
7) Pixel Size : 0.159 × 0.159 (mm)
8) Driver IC: SSD1306
9) Interface: I2C
10) Color:White/Blue
11) -40~85℃
