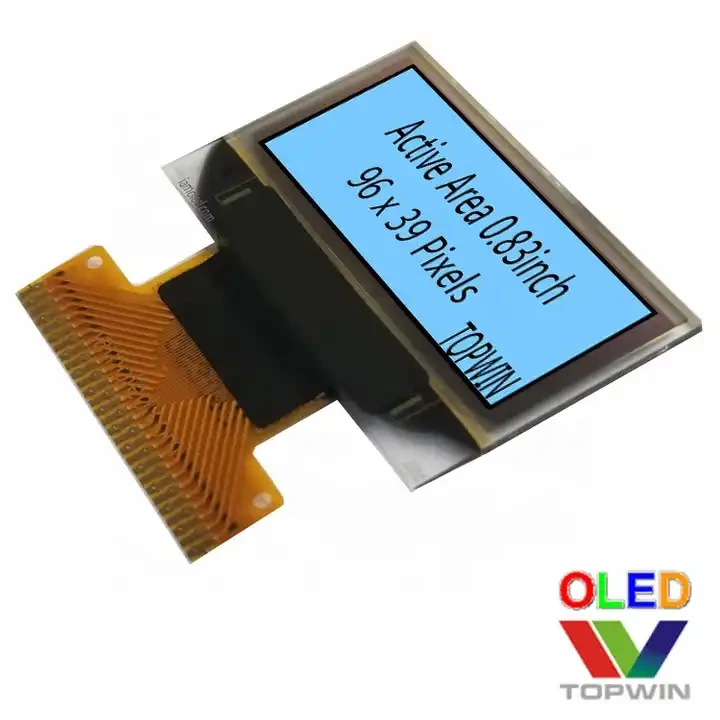

0.83inch oled display panel SSD1306 28pin Parallel, 4-wire SPI, I2C

1) Outline Drawing : According to the annexed outline drawing

2) Number of Pixels : 96 × 39

3) Module Size : 23.80 × 26.00 × 1.30 (mm)

4) Panel Size : 23.80 × 16.20 × 1.30 (mm) including “Anti-Glare Polarizer”

5) Active Area : 19.372 × 7.858 (mm)

6) Pixel Pitch : 0.202 × 0.202 (mm)

7) Pixel Size : 0.182 × 0.182 (mm)

8) Driver IC: SSD1312

8) Interface: 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C

10) Color:White/Blue

11) -40~85℃

INQUIRY
  • 产品描述
  • Features

  • 1) Outline Drawing : According to the annexed outline drawing

    2) Number of Pixels : 96 × 39

    3) Module Size : 23.80 × 26.00 × 1.30 (mm)

    4) Panel Size : 23.80 × 16.20 × 1.30 (mm) including “Anti-Glare Polarizer”

    5) Active Area : 19.372 × 7.858 (mm)

    6) Pixel Pitch : 0.202 × 0.202 (mm)

    7) Pixel Size : 0.182 × 0.182 (mm)

    8) Driver IC: SSD1312

    8) Interface: 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C

    10) Color:White/Blue

    11) -40~85℃
