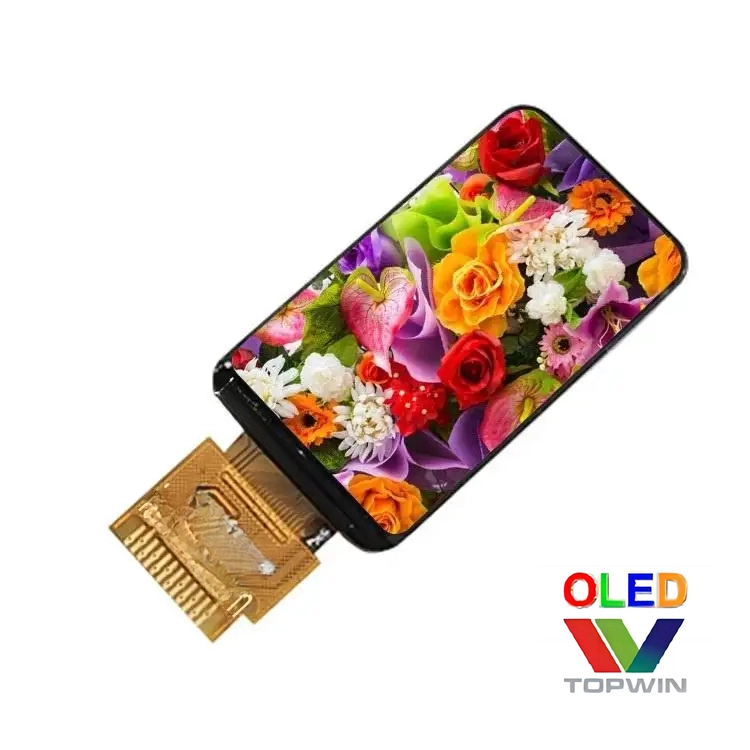

1.47inch TFT display IPS glass172x320 pixels colorful soldering type 12pin 4-wire SPI Interface 1

1.47inch TFT display IPS glass172x320 pixels colorful soldering type 12pin 4-wire SPI Interface 2

1.47inch TFT display IPS glass172x320 pixels colorful soldering type 12pin 4-wire SPI Interface

Experience brilliance in compact design with TOPWIN's 1.47" TFT display (Model Number: LBS147TCIG01). Featuring a vibrant 262K color palette, this display delivers stunning visuals with its 172(H)RGB x320(V) resolution. Powered by the reliable ST7789V3 Driver IC and equipped with a convenient 4-wire SPI interface, it ensures seamless integration into your projects. With a module size of 19.39(H) x 36.28(V) x 1.46(D) mm and an operating temperature range of -20°C to +70°C, this display is both versatile and durable. Illuminate your creations with its impressive luminance of 600 cd/m².

Features:

Size: 1.47inch soldering 12pin

Model Number: LBS147TCIG01

Color: 262K

Resolution: 172(H)RGB x320(V)

Driver IC: ST7789V3

Interface: 4-wire SPI

Module Size: 19.39(H) x 36.28(V) x1.46 (D)

Active Area: 17.3892(H) x 32.352(V)

Inquiry

Write a Review

Product Display

1 (22)

2 (14)

主图3 (2)

主图4

Related Parameters

Size:	1.47inch	Module size :	19.39(H) x 36.28(V) x1.46 (D)
Model Number:	LBS147TCIG01	Active Area:	17.3892(H) x 32.352(V)
Color	262K	Back light:	3 white LED parallel
Resolution:	172(H)RGB x320(V)	Viewing angle:	All view
Driver IC:	ST7789V3	Operating Temperature:	-20℃~ + 70℃
Interface:	4-wire SPI	Operating Temperature:	-20℃~ + 70℃
Pixel pitch:	0.07 x 0.21 (mm)	Luminance(cd/m2)	600
Pixel arrangement	RGB Vertical stripe

Regular FAQ

TOPWIN TECHNOLOGY was established in 2005, we have been specializing in the electronic display industry for 18 years. Our products are exported to over 30 countries all over the world. We have strict production & quality control process, experienced team of professional engineers, efficient warehouse management to ensure that high quality products can be delivered to our customers quickly.

Can I get samples from your factory?

Sure! We can offer sample at a very favourable price, and send them out within 1~2 working days.

If products have some quality problem, how would you deal with?

We will provide free replacement.

How long is the delivery time?

Samples: 1~2 working days. Official orders: We keep most of the standard models in stock. For big order, we will discuss with you separetely.

What is the standard of package?

Export standard package or special package according to customer requirement.

What kind of certificate you have?

We have ISO9001, ISO14001, ISO45001, RoHS

What’s the trade terms?

DAP. (DDP needs to be negotiated separately)

What is the delivery method?

We have agreements with many international couriers and can offer the most economical rates. And will provide tracking number after delivery.

What is the payment method?

For small orders: T/T in advance. For big orders: 30% deposit in advance, balance before delivery.

Is there a MOQ?

No.

Is it possible to customize?

Sure! We have a team of professional engineers who customize displays for different industries all over the world.

Is there technical support?

We will sent full specification,drawing and user guide. Our professional engineers will provide services at anytime.
