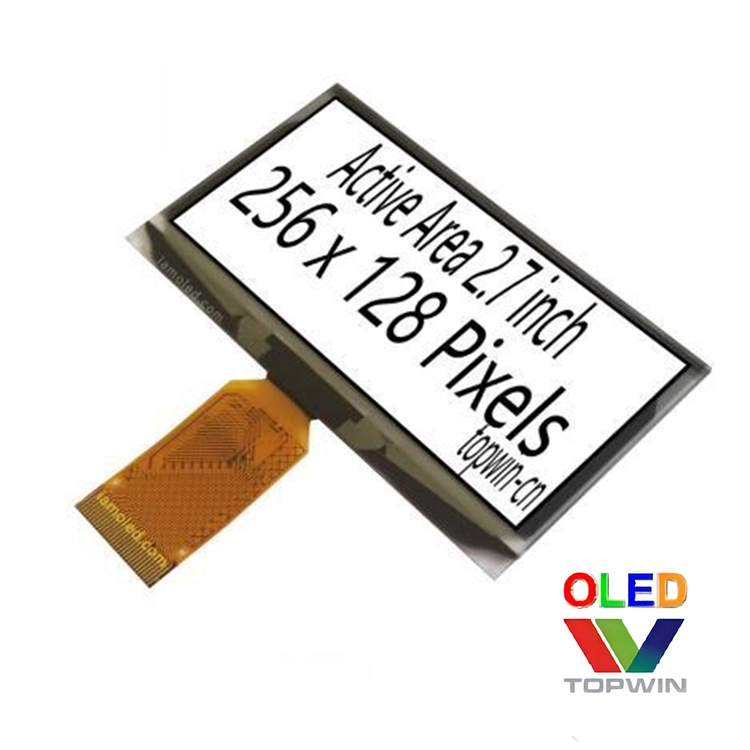

2.7inch high resolution oled display panel 256x128 Parallel, SPI, I2C interface UG-5628ASWCG01 1

2.7inch high resolution oled display panel 256x128 Parallel, SPI, I2C interface UG-5628ASWCG01 2

2.7inch high resolution oled display panel 256x128 Parallel, SPI, I2C interface UG-5628ASWCG01 3

2.7inch high resolution oled display panel 256x128 Parallel, SPI, I2C interface UG-5628ASWCG01

Experience the UG-5628ASWCG01, a cutting-edge 2.7-inch OLED display panel by TOPWIN that redefines visual excellence. Unlike other products in its class, this latest design boasts a remarkable 256x128 high resolution, offering a superior display quality that sets it apart. With three vibrant colors – white, green, and yellow – this small OLED display panel is a visual delight for various instruments and devices.

Features:

Size:2.7inch high resolution oled display

Model Number: UG-5628ASWCG01

Color:White/Yellow/Green

Resolution:256x128

Driver IC: SSD1363

Interface:8-Bit 68XX/80XX Parallel、4-Wire SPI、I2C

Module size :71.86 x 73.00 s 2.00 (mm)

Panel size:41.86 x 73.00 x 2.00 (mm) including “Polarizer”

Active Area: 30.70 x 61.42 (mm)

Inquiry

Write a Review

Product Display

What makes the UG-5628ASWCG01 even more versatile are its multiple interface options, including Parallel, SPI, and I2C, ensuring seamless integration with a wide range of applications. Whether you need a small OLED display panel or a 256x128 OLED solution, this product meets your demands flawlessly.

Elevate your devices and instruments with the UG-5628ASWCG01, combining exceptional resolution and interface flexibility for a dynamic visual experience. Choose innovation; choose TOPWIN.

1 (4)

2 (3)

3 (4)

Related Parameters

Display Type:	2.7inch high resolution oled display	Resolution:	256 x 128
Display Mode:	Passive Matrix	Driver IC:	SSD1363
Model Number:	UG-5628ASWCG01	Module size:	71.86 x 73.00 x 2.00 (mm)
Color options:	White/Yellow/Green	Panel Size:	41.86 x 73.00 x 2.00 (mm) including “Polarizer”
Interface:	8-Bit 68XX/80XX Parallel、4-Wire SPI、I2C	Active Area:	30.70 x 61.42 (mm)
Drive Duty:	1/128 duty	Active Area:	30.70 x 61.42 (mm)

Regular FAQ

TOPWIN TECHNOLOGY was established in 2005, we have been specializing in the electronic display industry for 18 years. Our products are exported to over 30 countries all over the world. We have strict production & quality control process, experienced team of professional engineers, efficient warehouse management to ensure that high quality products can be delivered to our customers quickly.

Can I get samples from your factory?

Sure! We can offer sample at a very favourable price, and send them out within 1~2 working days.

If products have some quality problem, how would you deal with?

We will provide free replacement.

How long is the delivery time?

Samples: 1~2 working days. Official orders: We keep most of the standard models in stock. For big order, we will discuss with you separetely.

What is the standard of package?

Export standard package or special package according to customer requirement.

What kind of certificate you have?

We have ISO9001, ISO14001, ISO45001, RoHS

What’s the trade terms?

DAP. (DDP needs to be negotiated separately)

What is the delivery method?

We have agreements with many international couriers and can offer the most economical rates. And will provide tracking number after delivery.

What is the payment method?

For small orders: T/T in advance. For big orders: 30% deposit in advance, balance before delivery.

Is there a MOQ?

No.

Is it possible to customize?

Sure! We have a team of professional engineers who customize displays for different industries all over the world.

Is there technical support?

We will sent full specification,drawing and user guide. Our professional engineers will provide services at anytime.
