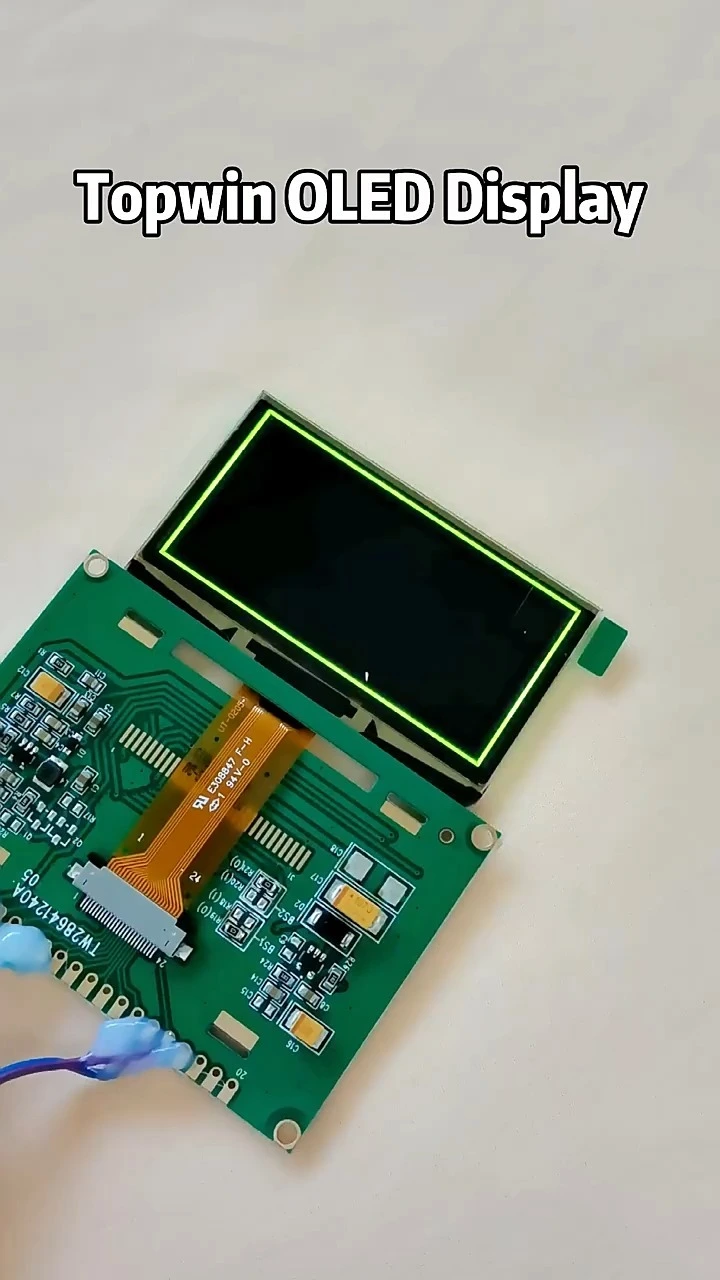

2.42" OLED Display for Precise Projects - UG-2864ASWPG01 SSD1309 Parallel/I²C/4-wireSPI interface
2.42inch oled display panel with SSD1309, Parallel/I²C/4-wireSPI interface
| Type | PMOLED |
| Display Size | 2.4inch |
Other attributes
| Place of Origin | Guangdong,China |
| Brand Name | Topwin |
| Display Mode | Passive Matrix |
| Driver IC | SSD1309 |
| Interface | Parallel,4-wire SPI,I2C |
| Display Color | Monochrome(White/Blue/Green/Yellow) |
| Drive Duty | 1/64 Duty |
| Number of Pixels | 128×64 |
| Panel Size | 60.50×37.00×2.00(mm) |
| Active Area | 55.01×27.49(mm) |
| Pixel Pitch | 0.43×0.43(mm) |
| Pixel Size | 0.40×0.40(mm) |
- 产品描述
- Features
-
2.42inch oled display panel with SSD1309, Parallel/I²C/4-wireSPI interface
Type PMOLED Display Size 2.4inch Other attributes
Place of Origin Guangdong,China Brand Name Topwin Display Mode Passive Matrix Driver IC SSD1309 Interface Parallel,4-wire SPI,I2C Display Color Monochrome(White/Blue/Green/Yellow) Drive Duty 1/64 Duty Number of Pixels 128×64 Panel Size 60.50×37.00×2.00(mm) Active Area 55.01×27.49(mm) Pixel Pitch 0.43×0.43(mm) Pixel Size 0.40×0.40(mm)
