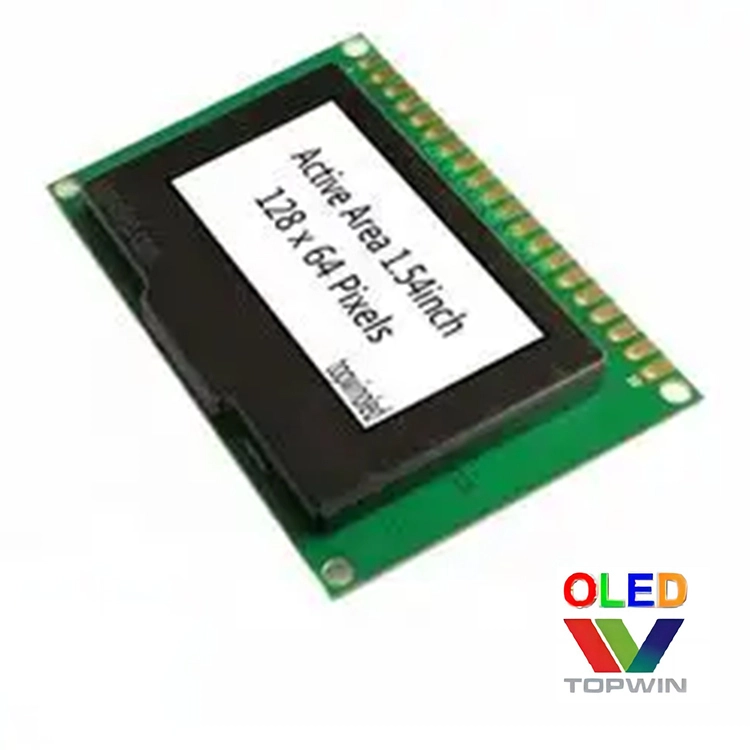

1.54inch oled display module SPI +I2C Parallel Interface White/Blue /Yellow color 20pin TW28640155YB02 1

1.54inch oled display module SPI +I2C Parallel Interface White/Blue /Yellow color 20pin TW28640155YB02 2

1.54inch oled display module SPI +I2C Parallel Interface White/Blue /Yellow color 20pin TW28640155YB02 3

1.54inch oled display module SPI +I2C Parallel Interface White/Blue /Yellow color 20pin TW28640155YB02

Discover the TW28640155YB02, a small OLED module by TOPWIN that packs a punch with a 1.54-inch display boasting a crisp 128x64 resolution. This versatile module is available in three vibrant colors: blue, white, and yellow, allowing you to customize your displays to suit your preferences or branding needs.

Features:

Size: 1.54inch oled display module

Model Number: TW28640155YB02

Color:White/Blue/Yellow

Resolution:128x64

Driver IC: SSD1309

Interface:8-Bit 68XX/80XX Parallel、4-Wire SPI、I2C

Module size : 57.5(W)x39.45(H)x7.8Max(T)

View Area:37(W)x19.5(H)

Active Area: 35.052(W)x17.516(H)

Inquiry

Write a Review

Product Display

What sets this module apart is its user-friendly design, featuring an included PCB board for swift installation on your instruments or devices. With Parallel, SPI and I2C interface options, integration is a breeze, providing flexibility to cater to your specific project requirements.

The TW28640155YB02 is the ideal choice for those seeking a compact, high-quality OLED display solution, delivering clear visuals and versatility in one. Upgrade your devices and instruments effortlessly with this small OLED module from TOPWIN.

1 (4)

2 (3)

3 (4)

Related Parameters

Display Type:	1.54inch oled display module 20pin	Driver IC:	SSD1305/SSD1309
Display Mode:	Passive Matrix	Module size:	57.5(W)x39.45(H)x7.8Max(T)
Model Number:	TW28640155YB02	Panel Size:	37(W)x19.5(H)
Color options:	White/Blue/Yellow	Active Area:	35.052(W)x17.516(H)
Interface:	8-Bit 68XX/80XX Parallel、4-Wire SPI、I2C	Pixel Pitch:	0.274(W)x0.274(H)
Drive Duty:	1/64 duty	Pixel Pitch:	0.274(W)x0.274(H)
Resolution:	128x64	Pixel Size:	0.254(W)x0.254(H)
