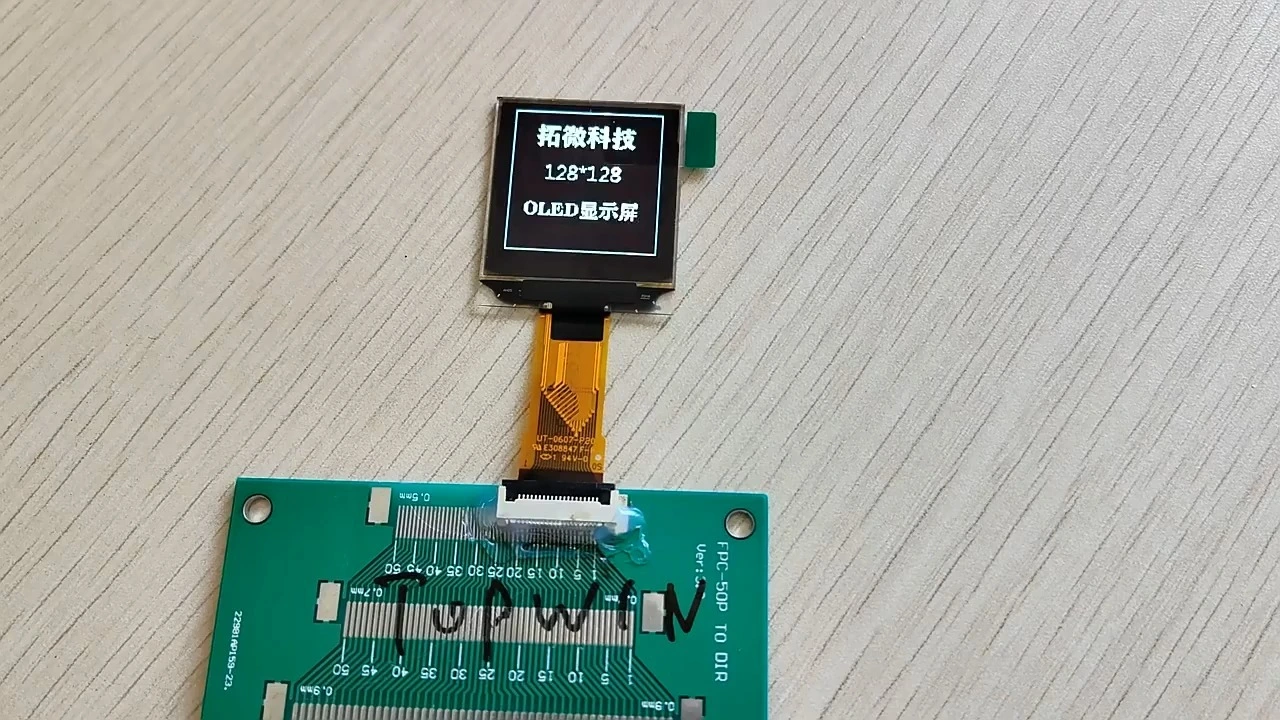

1.12inch oled panel 128x128 resolution driver IC SH1107 with multi interface

1) Outline Drawing : According to the annexed outline drawing

2) Number of Pixels : 128 × 128

3) Module Size : 25.90 × 41.20 × 1.20 (mm)

4) Panel Size : 25.90 × 30.10 × 1.20 (mm) including “Anti-Glare Polarizer”

5) Active Area : 20.076 × 20.076 (mm)

6) Pixel Pitch : 0.157 × 0.157 (mm)

7) Pixel Size : 0.137 × 0.137 (mm)

8) Driver IC: SH1107

9) Interface:  8-bit 68XX/80XX Parallel, 4-wire SPI, I2C

10) Color:White

11) -40~85℃
